Especificações Técnicas

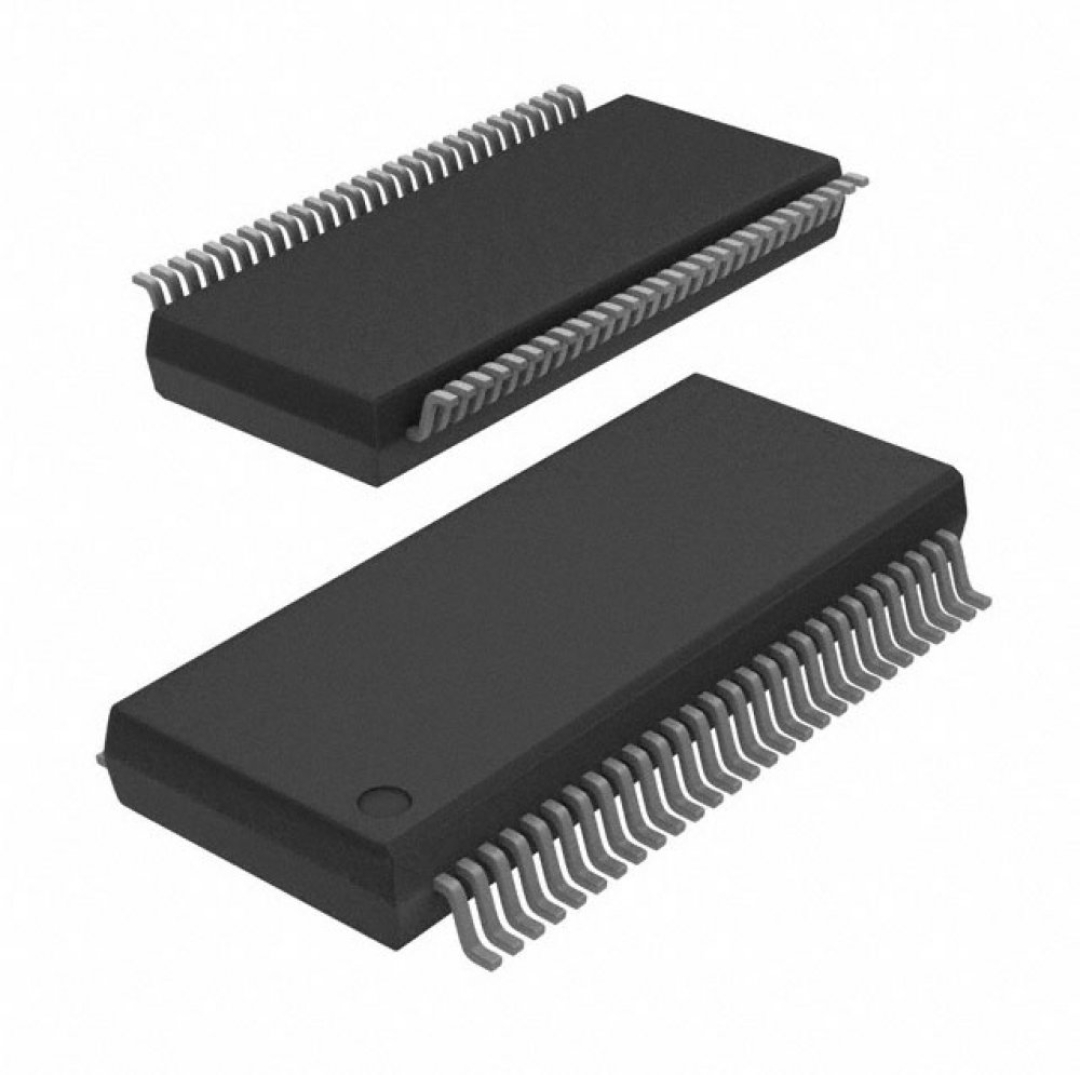

OUTROS PART NUMBERS PARA ESTE COMPONENTE: IDTCV152PVG FEATURES: - ONE HIGH PRECISION PLL FOR CPU, SSC, AND N PROGRAMMING - ONE HIGH PRECISION PLL FOR SRC/PCI, SSC, AND N PROGRAMMING - ONE HIGH PRECISION PLL FOR 48MHZ - BAND-GAP CIRCUIT FOR DIFFERENTIAL OUTPUTS - SUPPORT SPREAD SPECTRUM MODULATION, DOWN SPREAD 0.5% AND OTHERS - SUPPORT SMBUS BLOCK READ/WRITE, INDEX READ/WRITE - SELECTABLE OUTPUT STRENGTH FOR REF, 48MHZ, PCI - ALLOWS FOR CPU FREQUENCY TO CHANGE TO A HIGHER FREQUENCY FOR MAXIMUM SYSTEM COMPUTING POWER - AVAILABLE IN SSOP AND TSSOP PACKAGES   DESCRIPTION: IDTCV152 IS A 56 PIN CLOCK DEVICE, COMPLIANT WITH INTEL CK410B SPECIFICATION.THE CPU OUTPUT BUFFER IS DESIGNED TO SUPPORT UP TO 400MHZ PROCESSOR. THIS CHIP HAS THREE PLLS INSIDE FOR CPU, SRC/PCI, AND 48MHZ IO CLOCKS. THIS DEVICE ALSO IMPLEMENTS BAND-GAP REFERENCED IREF TO REDUCE THE IMPACT OF VDD VARIATION ON DIFFERENTIAL OUTPUTS, WHICH CAN PROVIDE MORE ROBUST SYSTEM PERFORMANCE. EACH CPU AND SRC/PCI HAS ITS OWN SPREAD SPECTRUM SELECTION, WHICH ALLOWS FOR ISOLATED CHANGES INSTEAD OF AFFECTING OTHER CLOCK GROUPS. CV152PVG CI PROGRAMMABLE FLEXPC CLOCK FOR P4 PROCESSOR MAIORES DETALHES DE CV152PVG NO SITE DO FABRICANTE: HTTPS://WWW.RXELECTRONICS.PT/DATASHEET/38/IDTCV152PVG.PDF TAGS DE CV152PVG: IC FLEXPC CLK PROGR P4 56-SSOP, IDTCV152PVG, CV152PVG, CK410

Informações Adicionais
