Especificações Técnicas

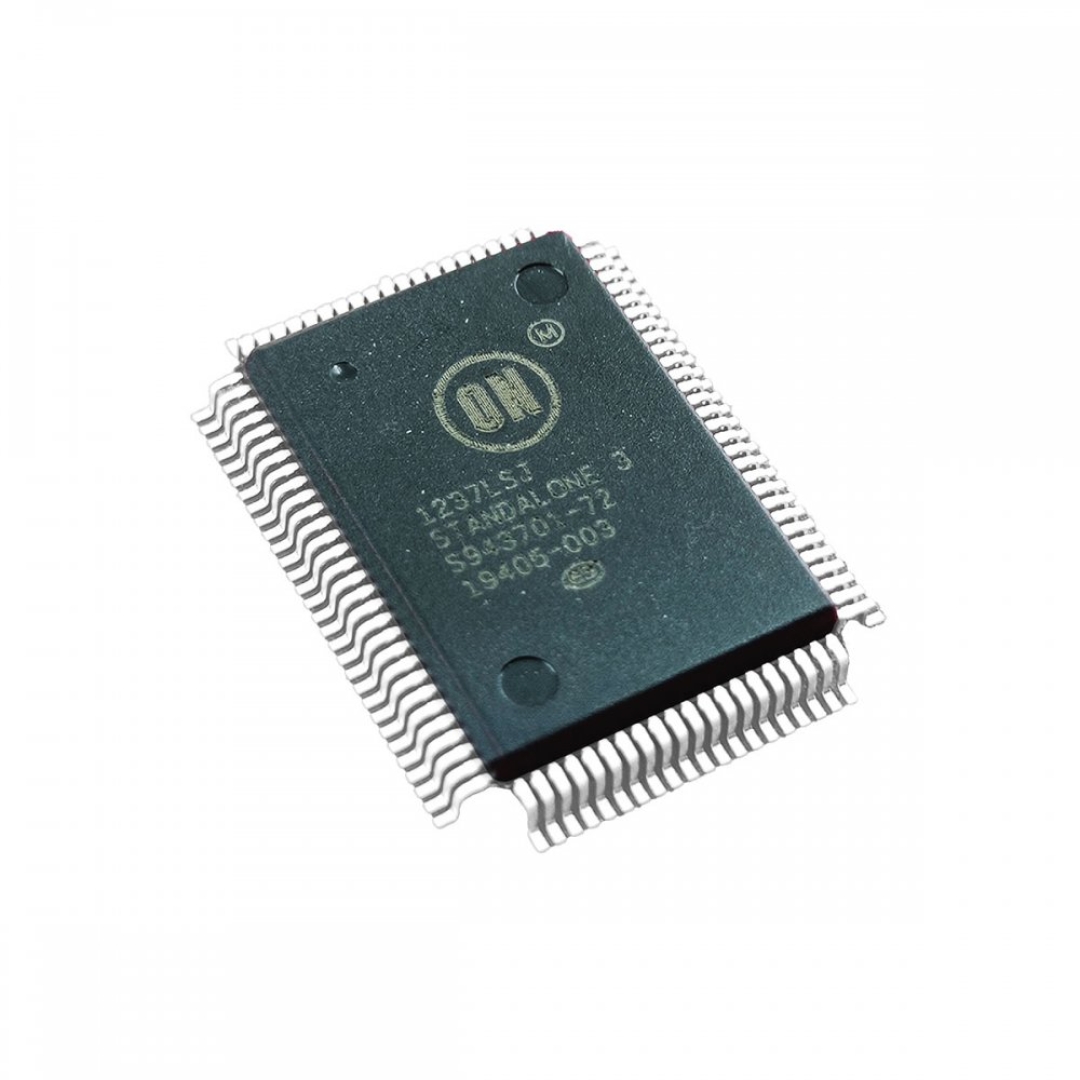

OUTROS PART NUMBERS PARA ESTE COMPONENTE: 19405-003, S943701-72 19405-003 THE YSS944 (ADAMBF), YSS943 (ADAMBB), YSS940 (ADAMBND) IS AN AUDIO DECODING DIGITAL SIGNAL PROCESSOR THAT INTEGRATES ONTO A SINGLE CHIP THE VARIOUS DIGITAL SIGNAL PROCESSING S REQUIRED FOR AV AMPLIFIERS, ETC. IT INCLUDES AN ADVANCED 32BIT FLOATINGPOINT DSP AND IS ABLE TO DECODE A VARIETY OF AUDIO FORMATS.   FEATURES SUPPORTS VARIOUS TYPES OF DECODING UP TO 7.1 CHANNELS (5.1/6.1/7.1 CHANNELS SELECTABLE). 5.1CHANNEL DECODING OF DOLBY DIGITAL (AC3), DTS, AAC. 6.1CHANNEL DECODING OF DOLBY DIGITAL EX, DTSES. DTS 96/24 DECODING AND AUDIO INTERFACE CLOCK DIVISION/SWITCHING S. DOLBY PRO LOGIC IIX AND DTS NEO:6 DECODING TONE CONTROL AND BASS MANAGEMENT S FUNCTION MODIFICATION/EXPANSION BY DOWNLOADING FIRMWARE TO ONCHIP MEMORY LIPSYNC THAT ENABLES SYNCHRONIZATION OF VOICE AND VIDEO WITH VARIABLE VOICE DELAY SUPPORTS SAMPLING FREQUENCIES UP TO 192 KHZ DURING PCM PLAYBACK. 1/2 DOWN SAMPLING WHEN TWO PCM CHANNELS ARE PLAYED BACK DOLBY DIGITAL/DTS/AAC DECODE INFORMATION OUTPUT (CAN BE READ BY MICROPROCESSOR) HIGHSPEED/HIGHACCURACY OPERATION BY 32BIT FLOATINGPOINT DSP OPERATING FREQUENCY: 180 MHZ (178.176 MHZ) DATA BUS WIDTH: 32 BITS (24BIT MANTISSA AND 8BIT EXPONENT) MULTIPLIER/ADDER: 32 BITS 32 BITS 55 BITS 55 BITS (47BIT MANTISSA AND 8BIT EXPONENT) NO EXTERNAL MEMORY NEEDED (EXTERNAL MEMORY IS USED WHEN DELAY IS INCREASED.) EIGHT GENERAL I/O PORTS ONCHIP PLL FOR GENERATION OF HIGHSPEED INTERNAL OPERATING CLOCK SUPPLY VOLTAGE: 1.2 V (CORE BLOCK) AND 3.3 V (PIN BLOCK) LOW POWER CONSUMPTION: ABOUT 210 MW (STANDARD VALUE DURING DOLBY DIGITAL DECODING) SIGATE CMOS PROCESS APPLICATIONS AMPLIFICADORES AV PARA HOME THEATERS SISTEMAS DE ÁUDIO AUTOMOTIVO S943701-72 CI PROCESSADOR DECODIFICADOR DE AUDIO DIGITAL DSP TAGS DE S943701-72: 19405-003 STANDALONE ON, YSS944 ADAMB-F, YSS943 ADAMB-B, YSS940 ADAMB-ND, YSS944-VZ, YSS943-VZ E YSS940-VZ, CI DECODIFICAÇÃO DOLBY DIGITAL, DOLBY PRO LOGIC, CI DECODIFICADOR RECEIVER, AMIS QFP-100, 19405-003-5380959, CI DOLBY DIGITAL DTS AAC
