Especificações Técnicas

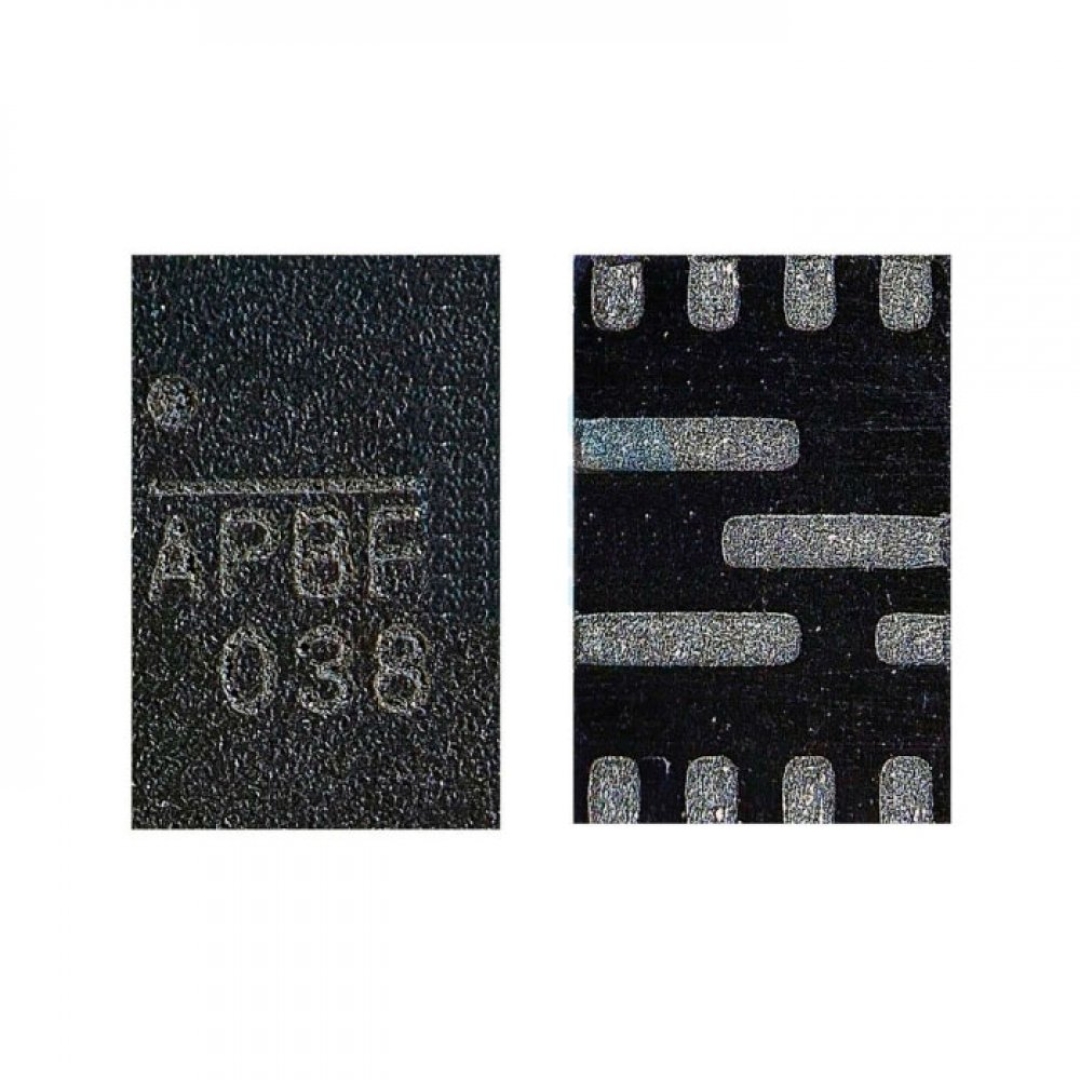

FEATURES WIDE 5.5V TO 28V OPERATING INPUT RANGE FIXED 3.36V VOUT( 1.8% OF 3.3V) LP OUTPUT VOLTAGE SCALING (3% OF 3.3V) ULTRASONIC MODE 100A LOW QUIESCENT CURRENT 8A CONTINUOUS AND 10A PEAK OUTPUT CURRENT ADAPTIVE COT FOR FAST TRANSIENT DC AUTOTUNE LOOP STABLE WITH POSCAP AND CERAMIC OUTPUT CAPACITORS 250 KHZ CLK FOR EXTERNAL CHARGE PUMP BUILTIN 3.3V, 100MA LDO WITH SWITCH OVER 1% REFERENCE VOLTAGE INTERNAL SOFT START OUTPUT DISCHARGE 700KHZ SWITCHING FREQUENCY OCP, OVP, UVP, AND THERMAL SHUTDOWN LATCHOFF RESET VIA EN OR POWER CYCLE QFN12 2MM X 3MM PACKAGE   APPLICATIONS LAPTOP COMPUTERS TABLET PCS NETWORKING SYSTEMS SERVERS FLAT PANEL TELEVISIONS AND MONITORS DISTRIBUTED POWER SYSTEMS     MANUFACTURER: MONOLITHIC POWER SYSTEMS (MPS) PRODUCT CATEGORY: SWITCHING VOLTAGE REGULATORS     MOUNTING STYLE: SMD/SMT PACKAGE / CASE: QFN12 TOPOLOGY: BUCK OUTPUT VOLTAGE: 3.36 V OUTPUT CURRENT: 8 A NUMBER OF OUTPUTS: 1 OUTPUT INPUT VOLTAGE, MIN: 5.5 V INPUT VOLTAGE, MAX: 26 V SWITCHING FREQUENCY: 700 KHZ SERIES: NB680A PACKAGING: REEL BRAND: MONOLITHIC POWER SYSTEMS (MPS) INPUT VOLTAGE: 5.5 V TO 26 V OPERATING SUPPLY CURRENT: 100 UA PRODUCT: VOLTAGE REGULATORS PRODUCT TYPE: SWITCHING VOLTAGE REGULATORS SHUTDOWN: SHUTDOWN NB680 CI NB680AGD-Z BUCK CONVERTER 26V 3.36V 8A QFN-16 MAIORES DETALHES DE NB680 NO SITE DO FABRICANTE: HTTPS://WWW.MONOLITHICPOWER.COM/EN/DOCUMENTVIEW/PRODUCTDOCUMENT/INDEX/VERSION/2/ TAGS DE NB680: NB680, NB680A, NB680AGD, NB680AGDZ, NB681
