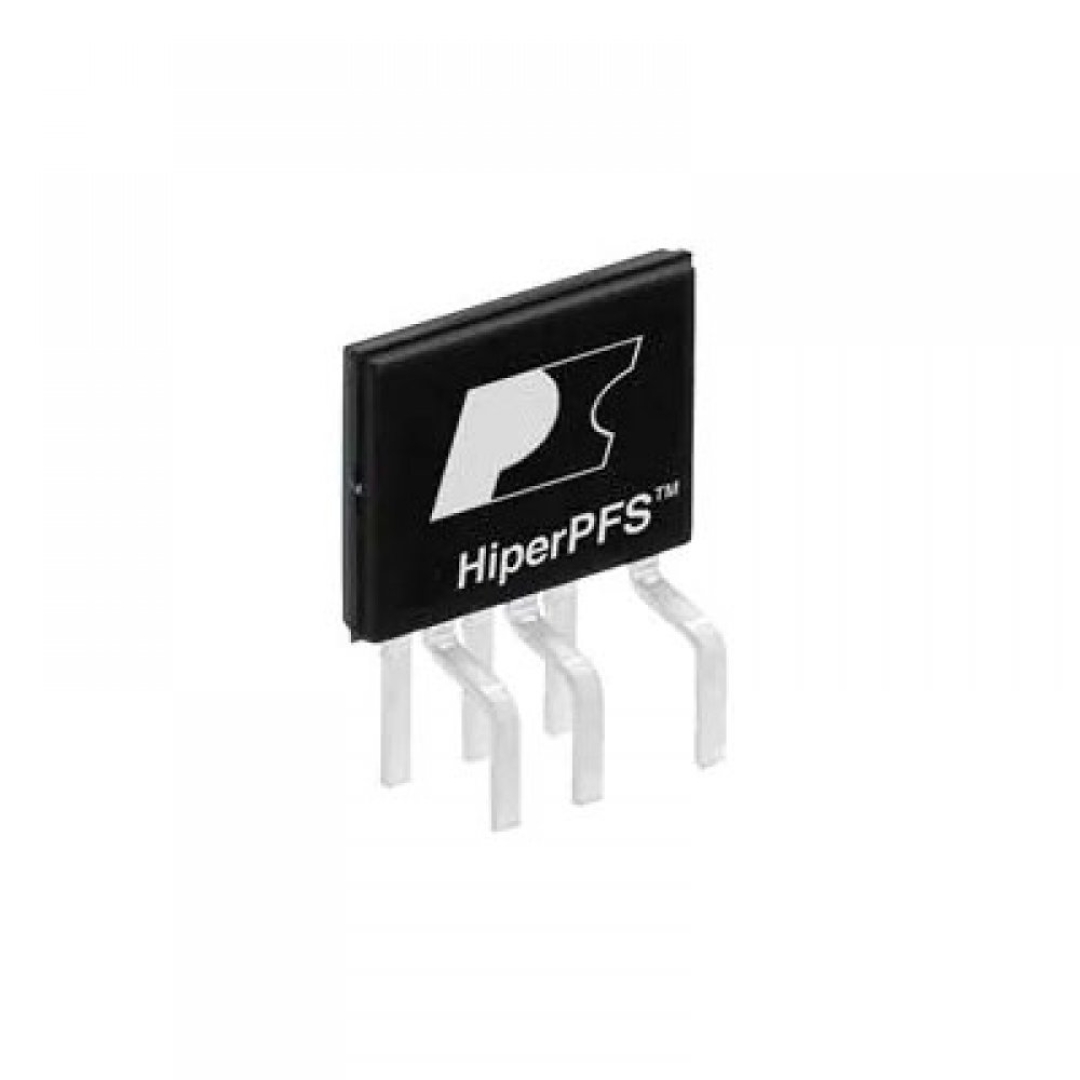

DESCRIPTION THE HIPERPFS DEVICE FAMILY MEMBERS INCORPORATE A CONTINUOUS CONDUCTION MODE (CCM) BOOST PFC CONTROLLER, GATE DRIVER, AND HIGH VOLTAGE POWER MOSFET IN A SINGLE, LOW-PROFILE ESIP POWER PACKAGE THAT IS ABLE TO PROVIDE NEAR UNITY INPUT POWER FACTOR. THE HIPERPFS DEVICES ELIMINATE THE PFC CONVERTERS NEED FOR EXTERNAL CURRENT SENSE RESISTORS, THE POWER LOSS ASSOCIATED WITH THOSE COMPONENTS, AND LEVERAGES AN INNOVATIVE CONTROL TECHNIQUE THAT ADJUSTS THE SWITCHING FREQUENCY OVER OUTPUT LOAD, INPUT LINE VOLTAGE, AND EVEN INPUT LINE CYCLE. THIS CONTROL TECHNIQUE IS DESIGNED TO MAXIMIZE EFFICIENCY OVER THE ENTIRE LOAD RANGE OF THE CONVERTER, PARTICULARLY AT LIGHT LOADS. ADDITIONALLY, THIS CONTROL TECHNIQUE SIGNIFICANTLY MINIMIZES THE EMI FILTERING REQUIREMENTS DUE TO ITS WIDE-BANDWIDTH SPREAD SPECTRUM EFFECT. HIPERPFS INCLUDES POWER INTEGRATIONS STANDARD SET OF COMPREHENSIVE PROTECTION FEATURES, SUCH AS INTEGRATED SOFT-START, UV, OV, BROWN-IN/OUT, AND HYSTERETIC THERMAL SHUTDOWN. HIPERPFS ALSO PROVIDES CYCLE-BY-CYCLE CURRENT LIMIT FOR THE POWER MOSFET, POWER LIMITING OF THE OUTPUT FOR OVER-LOAD PROTECTION, AND PIN-TO-PIN SHORT-CIRCUIT PROTECTION. PRODUCT HIGHLIGHTS KEY BENEFITS SINGLE CHIP SOLUTION FOR BOOST POWER FACTOR CORRECTION (PFC) EN61000-3-2 CLASS C E D COMPLIANCE HIGH LIGHT LOAD EFFICIENCY AT 10% AND 20% LOAD >95% EFFICIENCY FROM 10% LOAD TO FULL LOAD FREQUENCY ADJUSTED OVER LINE VOLTAGE, AND LINE CYCLE SPREAD-SPECTRUM ACROSS >60 KHZ WINDOW TO SIMPLIFY EMI FILTERING REQUIREMENTS LOWER BOOST INDUCTANCE PROVIDES UP TO 1 KW PEAK OUTPUT POWER >1 KW PEAK POWER DELIVERY IN POWER LIMIT VOLTAGE REGULATION MODE HIGH INTEGRATION ALLOWS SMALLER FORM FACTOR, HIGHER POWER DENSITY DESIGNS INCORPORATES CONTROL, GATE DRIVER, AND HV POWER MOSFET INTERNAL CURRENT SENSE REDUCES COMPONENT COUNT AND SYSTEM LOSSES PROTECTION FEATURES INCLUDE: UV, OV, OTP, BROWN-IN/OUT, CYCLE-BY-CYCLE CURRENT LIMIT, PFS714EG CI MOSFET CONTROLADOR DE CIRCUITO PFC EM FONTES MAIORES DETALHES DE PFS714EG NO SITE DO FABRICANTE: HTTPS://WWW.POWER.COM/PRODUCTS/HIPER/HIPERPFS/PFS714EG TAGS DE PFS714EG: PFS714EG, POWER FACTOR CORRECTION PFC, HIGH POWER PFC CONTROLLER WITH INTEGRATED HIGH-VOLTAGE MOSFET, ESIP-7, HIPERPFS
