Especificações Técnicas

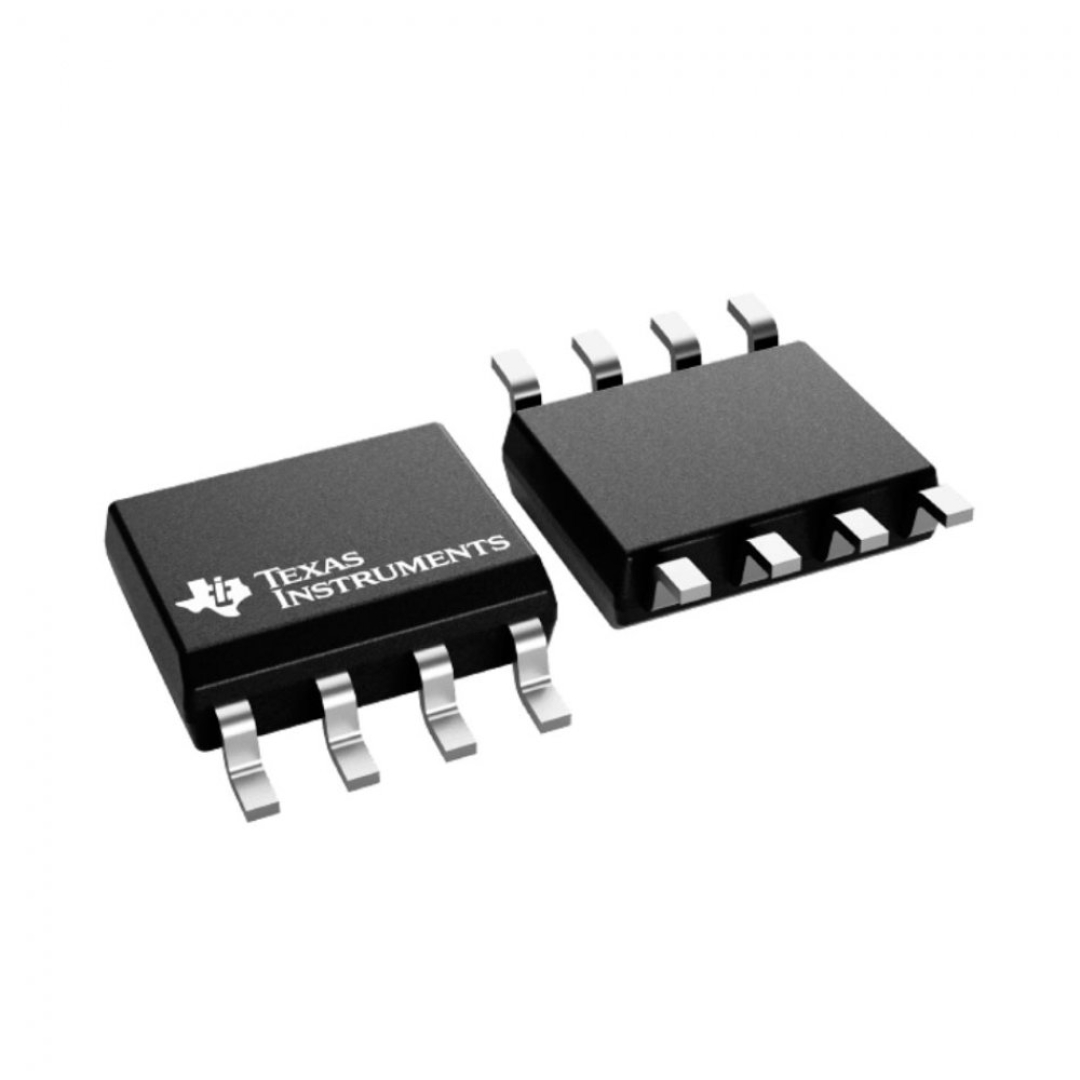

MANUFACTURER: TEXAS INSTRUMENTS PRODUCT CATEGORY: INSTRUMENTATION AMPLIFIERS     SERIES: INA121 NUMBER OF CHANNELS: 1 CHANNEL 3 DB BANDWIDTH: 50 KHZ SR SLEW RATE: 700 MV/US CMRR COMMON MODE REJECTION RATIO: 96 DB IB INPUT BIAS CURRENT: 50 PA VOS INPUT OFFSET VOLTAGE: 500 UV SUPPLY VOLTAGE MAX: 36 V SUPPLY VOLTAGE MIN: 4.5 V OPERATING SUPPLY CURRENT: 450 UA MINIMUM OPERATING TEMPERATURE: 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: SOIC8 PACKAGING: REEL PACKAGING: CUT TAPE PACKAGING: MOUSEREEL AMPLIFIER TYPE: INSTRUMENTATION AMPLIFIER BRAND: TEXAS INSTRUMENTS DUAL SUPPLY VOLTAGE: / 15 V EN INPUT VOLTAGE NOISE DENSITY: 20 NV/SQRT HZ GAIN ERROR: 0.005 % GAIN V/V: 1 V/V TO 10000 V/V GBP GAIN BANDWIDTH PRODUCT: 600 KHZ HEIGHT: 1.58 MM INL INTEGRAL NONLINEARITY: 0.005 % LENGTH: 4.9 MM MAXIMUM INPUT RESISTANCE: 1 TOHMS MOISTURE SENSITIVE: YES OPERATING SUPPLY VOLTAGE: 4.5 V TO 36 V PRODUCT: INSTRUMENTATION AMPLIFIERS PRODUCT TYPE: INSTRUMENTATION AMPLIFIERS INA121UA/2K5 CI INSTRUMENTATION AMPLIFIER 1CH SOIC8 MAIORES DETALHES DE INA121UA/2K5 NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/PRODUCT/INA121/PART-DETAILS/INA121UA/2K5 TAGS DE INA121UA/2K5: INA121UA/2K5, INA121UA, INA121U, INA121UA, CI 121U, IC INA121U, INSTRUMENTATION AMPLIFIERS FET INPUT LOW POWER INSTRUMENTATION AMP
