Especificações Técnicas

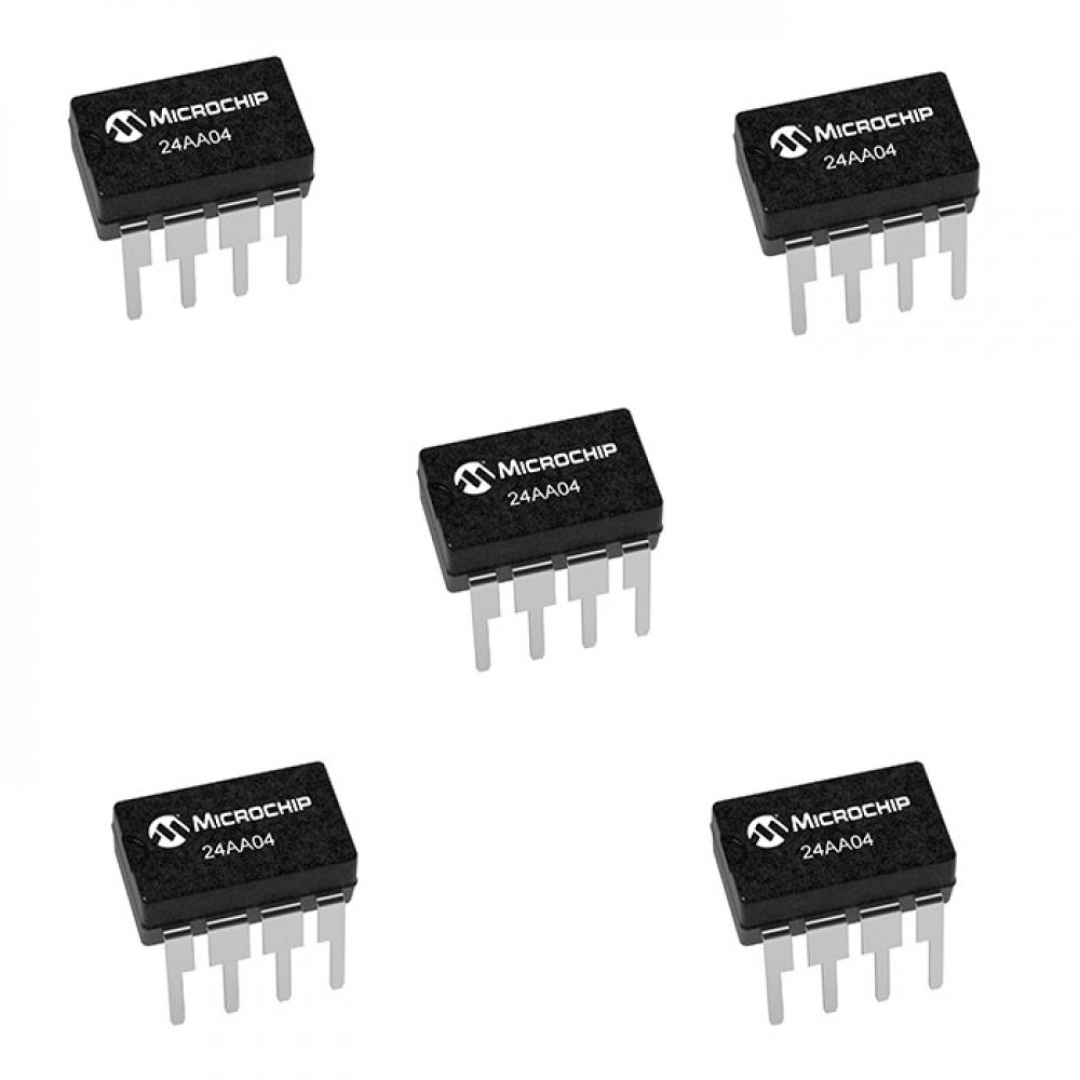

OUTROS PART NUMBERS PARA ESTE COMPONENTE: 24C04, ATMEL538 24C04 KIT COM 5 UNIDADES     THE MICROCHIP TECHNOLOGY INC. 24AA04 IS A 4KB I2C- COMPATIBLE SERIAL EEPROM. THE DEVICE IS ORGANIZED AS TWO BLOCKS OF 256 X 8-BIT MEMORY WITH A 2-WIRE SERIAL INTERFACE. LOW-VOLTAGE DESIGN PERMITS OPERATION DOWN TO 1.7V, WITH STANDBY AND ACTIVE CURRENTS OF ONLY 1 A AND 1 MA, RESPECTIVELY. THE 24AA04 ALSO HAS A PAGE WRITE CAPABILITY FOR UP TO 16 BYTES OF DATA. THE 24XX04 IS AVAILABLE IN THE STANDARD 8-PIN PDIP, SURFACE MOUNT SOIC, TSSOP, 2X3 DFN AND MSOP PACKAGES AND IS ALSO AVAILABLE IN THE 5-LEAD SOT-23 PACKAGE.   SINGLE SUPPLY WITH OPERATION DOWN TO 1.7V LOW-POWER CMOS TECHNOLOGY: 2-WIRE SERIAL INTERFACE, I2C- COMPATIBLE SCHMITT TRIGGER INPUTS FOR NOISE SUPPRESSION OUTPUT SLOPE CONTROL TO ELIMINATE GROUND BOUNCE 100 KHZ AND 400 KHZ CLOCK COMPATIBILITY PAGE WRITE TIME 3 MS, TYPICAL SELF-TIMED ERASE/WRITE CYCLE 16-BYTE PAGE WRITE BUFFER HARDWARE WRITE-PROTECT ESD PROTECTION >4,000V MORE THAN 1 MILLION ERASE/WRITE CYCLES DATA RETENTION >200 YEARS     MANUFACTURER: MICROCHIP PRODUCT CATEGORY: EEPROM ROHS:   MOUNTING STYLE: THROUGH HOLE PACKAGE / CASE: PDIP-8 INTERFACE TYPE: 2 WIRE I2C MEMORY SIZE: 4 KBIT ORGANIZATION: 512 X 8 SUPPLY VOLTAGE - MIN: 1.8 V SUPPLY VOLTAGE - MAX: 5.5 V MINIMUM OPERATING TEMPERATURE: 0 C MAXIMUM OPERATING TEMPERATURE: 70 C MAXIMUM CLOCK FREQUENCY: 100 KHZ ACCESS TIME: 900 NS DATA RETENTION: 200 YEAR SUPPLY CURRENT - MAX: 1 MA SERIES: 24AA04 PACKAGING: TUBE BRAND: MICROCHIP TECHNOLOGY HEIGHT: 3.3 MM LENGTH: 9.4 MM OPERATING SUPPLY CURRENT: 0.1 MA, 0.05 MA OPERATING SUPPLY VOLTAGE: 1.8 V TO 5.5 V PRODUCT TYPE: EEPROM PROGRAMMING VOLTAGE: 1.7 V TO 5.5 V     KIT COM 5 UNIDADES 24AA04/P CI EEPROM 512X8 I2C (KIT COM 5 UNIDADES) MAIORES DETALHES DE 24AA04/P NO SITE DO FABRICANTE: HTTPS://WWW.MICROCHIP.COM/EN-US/PRODUCT/24AA04 TAGS DE 24AA04/P: 24AA04/P, 24AA04, 24AA04P, 24AA04-P, 24AA024HT-I/ST, 24AA024HT-I, 24AA024HT, 24AA02 SMD, 24AA04T-I/MNY, 24AA04/SN, 24AA04-I/MC, PIC 8 PINOS, PIC 8 TERMINAIS, 4KB I2C COMPATIBLE 2-WIRE SERIAL EEPROM
