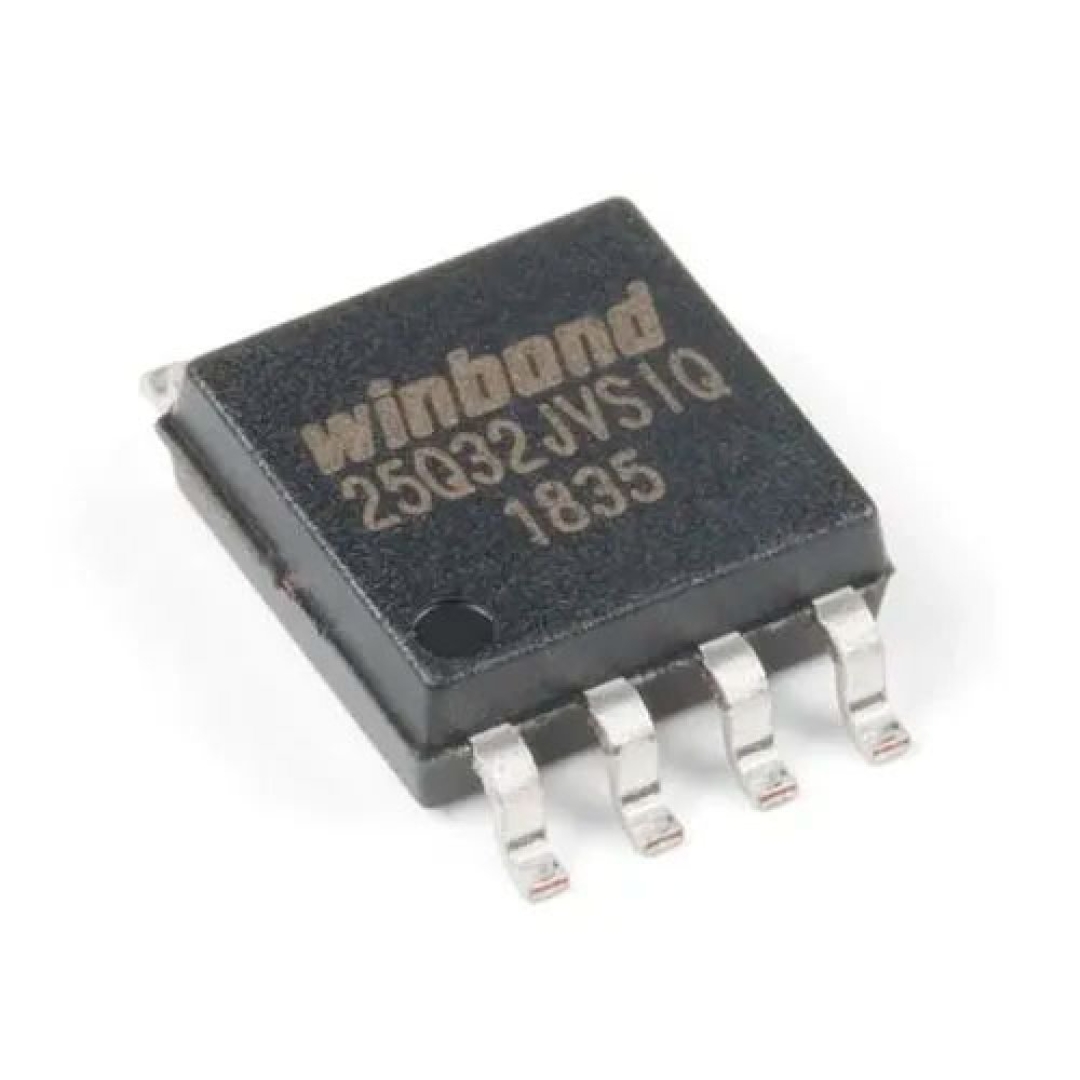

OUTROS PART NUMBERS PARA ESTE COMPONENTE: W25Q128JV THE W25Q128JV (128MBIT) SERIAL FLASH MEMORY PROVIDES A STORAGE SOLUTION FOR SYSTEMS WITH LIMITED SPACE, PINS AND POWER. THE 25Q SERIES OFFERS FLEXIBILITY AND PERFORMANCE WELL BEYOND ORDINARY SERIAL FLASH DEVICES. THEY ARE IDEAL FOR CODE SHADOWING TO RAM, EXECUTING CODE DIRECTLY FROM DUAL/QUAD SPI (XIP) AND STORING VOICE, TEXT AND DATA. THE DEVICE OPERATES ON A SINGLE 2.7V TO 3.6V POWER SUPPLY WITH CURRENT CONSUMPTION AS LOW AS 1A FOR POWERDOWN. ALL DEVICES ARE OFFERED IN SPACESAVING PACKAGES.   THE W25Q128JV ARRAY IS ORGANIZED INTO 65,536 PROGRAMMABLE PAGES OF 256BYTES EACH. UP TO 256 BYTES CAN BE PROGRAMMED AT A TIME. PAGES CAN BE ERASED IN GROUPS OF 16 (4KB SECTOR ERASE), GROUPS OF 128 (32KB BLOCK ERASE), GROUPS OF 256 (64KB BLOCK ERASE) OR THE ENTIRE CHIP (CHIP ERASE). THE W25Q128JV HAS 4,096 ERASABLE SECTORS AND 256 ERASABLE BLOCKS RESPECTIVELY. THE SMALL 4KB SECTORS ALLOW FOR GREATER FLEXIBILITY IN APPLICATIONS THAT REQUIRE DATA AND PARAMETER STORAGE. (SEE FIGURE 2.)   THE W25Q128JV SUPPORTS THE STANDARD SERIAL PERIPHERAL INTERFACE (SPI), DUAL/QUAD I/O SPI: SERIAL CLOCK, CHIP SELECT, SERIAL DATA I/O0 (DI), I/O1 (DO), I/O2 AND I/O3. SPI CLOCK FREQUENCIES OF W25Q128JV OF UP TO 133MHZ ARE SUPPORTED ALLOWING EQUIVALENT CLOCK RATES OF 266MHZ (133MHZ X 2) FOR DUAL I/O AND 532MHZ (133MHZ X 4) FOR QUAD I/O WHEN USING THE FAST READ DUAL/QUAD I/O. THESE TRANSFER RATES CAN OUTPERFORM STANDARD ASYNCHRONOUS 8 AND 16BIT PARALLEL FLASH MEMORIES.   ADDITIONALLY, THE DEVICE SUPPORTS JEDEC STANDARD MANUFACTURER AND DEVICE ID AND SFDP, AND A 64BIT UNIQUE SERIAL NUMBER AND THREE 256BYTES SECURITY REGISTERS.   FEATURES NEW FAMILY OF SPIFLASH MEMORIES W25Q128JV: 128MBIT / 16MBYTE STANDARD SPI: CLK, /CS, DI, DO DUAL SPI: CLK, /CS, IO0, IO1 QUAD SPI: CLK, /CS, IO0, IO1, IO2, IO3 SOFTWARE E HARDWARE RESET(1)   HIGHEST PERFORMANCE SERIAL FLASH 133MHZ SINGLE, DUAL/QUAD SPI CLOCKS 266/532MHZ EQUIVALENT DUAL/QUAD SPI 66MB/S CONTINUOUS DATA TRANSFER RATE MIN. 100K PROGRAMERASE CYCLES PER SECTOR MORE THAN 20YEAR DATA RETENTION   EFFICIENT CONTINUOUS READ CONTINUOUS READ WITH 8/16/32/64BYTE WRAP AS FEW AS 8 CLOCKS TO ADDRESS MEMORY ALLOWS TRUE XIP (EXECUTE IN PLACE) OPERATION   LOW POWER, WIDE TEMPERATURE RANGE SINGLE 2.7 TO 3.6V SUPPLY 40C TO 85C OPERATING RANGE 40C TO 105C OPERATING RANGE 25Q128JVSQ CI DE BIOS 128MBIT FLASH 3.3V SOIC8 MAIORES DETALHES DE 25Q128JVSQ NO SITE DO FABRICANTE: HTTPS://WWW.WINBOND.COM/RESOURCE-FILES/W25Q128JV%20REVF%2003272018%20PLUS.PDF TAGS DE 25Q128JVSQ: 25Q128JVSQ-KIT5, W25Q128JV, 25Q128JVSQ, QH128AHIG, CI DE BIOS DE 128MB, BIOS DE 128MB, XM25QH128AHIG, 25QH128AHI, 25QH128A, XM25QH128A, CHIP DE BIOS 32MB, BIOS 32MB, BIOS DE NOTEBOOK 32MB, EN25Q32B-104HIP, EN25Q32B, Q32B-104HIP, Q64-104HIP, -104HIP, Q64104HIP, 25Q64FVSIG, CFEON Q64-104HIP, EN25Q64, 25Q64FVSIG, BIOS DE NOTEBOK, CI DE BIOS, IC BIOS, EN25Q32B-104HIP, EN25Q32B, Q32B-104HIP, BIOS PARA NOTEBOOK, BIOS DE NOTEBOOK, CI DE BIOS, IC BIOS, Q32B104HIP, Q32B-104H1P, EN25Q64, W25Q32, CFEON Q32B-104HIP, EON CFEON, BIOS PARA NOTEBOOK, BIOS DE NOTEBOOK, CI DE BIOS, IC BIOS, Q32B104HIP, Q32B-104H1P, EN25Q64, W25Q32, CFEON Q32B-104HIP, EON CFEON, 128 MEGABIT 3V SERIAL FLASH MEMORY WITH 4KBYTE UNIFORM SECTOR, 128MB SERIAL FLASH MEMORY
