Especificações Técnicas

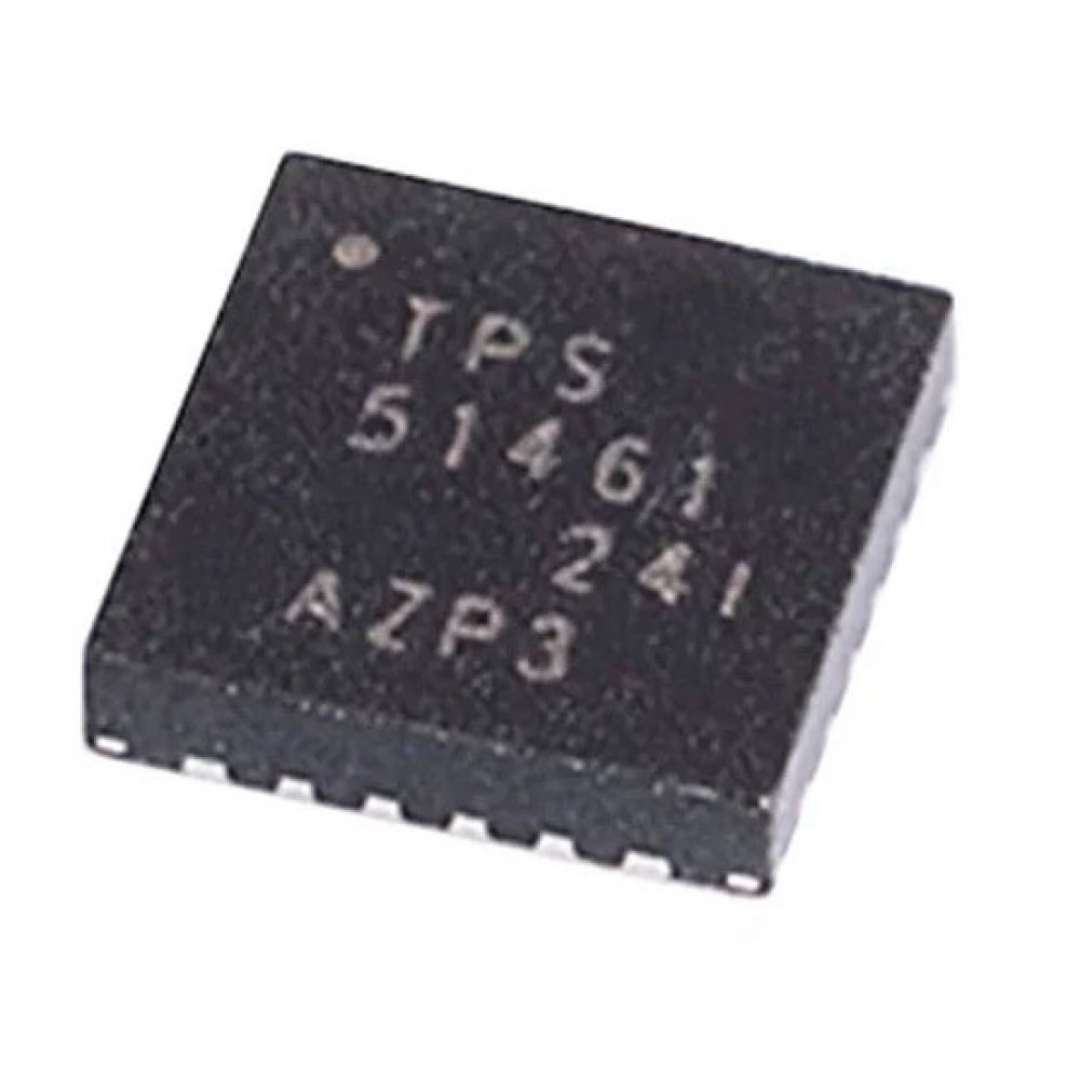

3.3V/5V INPUT 6A, D-CAP  MODE SYNCHRONOUS STEP DOWN INTEGRATED FETS CONVERTER WITH 2 BIT VID     FEATURES FOR THE TPS51461 INTEGRATED FETS CONVERTER W/TI PROPRIETARY D-CAP MODE ARCHITECTURE 6-A MAXIMUM OUTPUT CURRENT MINIMUM EXTERNAL PARTS COUNT SUPPORT ALL MLCC OUTPUT CAPACITOR AND SP/POSCAP AUTO SKIP MODE SELECTABLE 700-KHZ AND 1-MHZ FREQUENCY SMALL 4 4, 24-PIN, QFN PACKAGE DESCRIPTION FOR THE TPS51461 THE TPS51461 IS A FULLY INTEGRATED SYNCHRONOUS BUCK REGULATOR EMPLOYING D-CAP . IT IS USED FOR UP TO 5-V STEP-DOWN WHERE SYSTEM SIZE IS AT ITS PREMIUM, PERFORMANCE AND OPTIMIZED BOM ARE MUST-HAVES. THIS DEVICE FULLY SUPPORTS INTEL SYSTEM AGENT APPLICATIONS WITH INTEGRATED 2-BIT VID . THE TPS51461 ALSO FEATURES TWO SWITCHING FREQUENCY SETTINGS (700 KHZ AND 1 MHZ), SKIP MODE, PRE-BIAS STARTUP, PROGRAMMABLE EXTERNAL CAPACITOR SOFT-START TIME/VOLTAGE TRANSITION TIME, OUTPUT DISCHARGE, INTERNAL VBST SWITCH, 2-V REFERENCE (1%), POWER GOOD AND ENABLE. THE TPS51461 IS AVAILABLE IN A 4 MM 4 MM, 24-PIN, QFN PACKAGE (GREEN ROHS COMPLIANT AND PB FREE) AND IS SPECIFIED FROM 0C TO 85C.   TPS51461 CI CONVEROR STEP DOWN QFN-24 MAIORES DETALHES DE TPS51461 NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/TPS51461.PDF?TS=1685311075022 TAGS DE TPS51461: TPS51461RGER, TPS51461, TPS 51461, TPS51461RGET

Informações Adicionais
