Especificações Técnicas

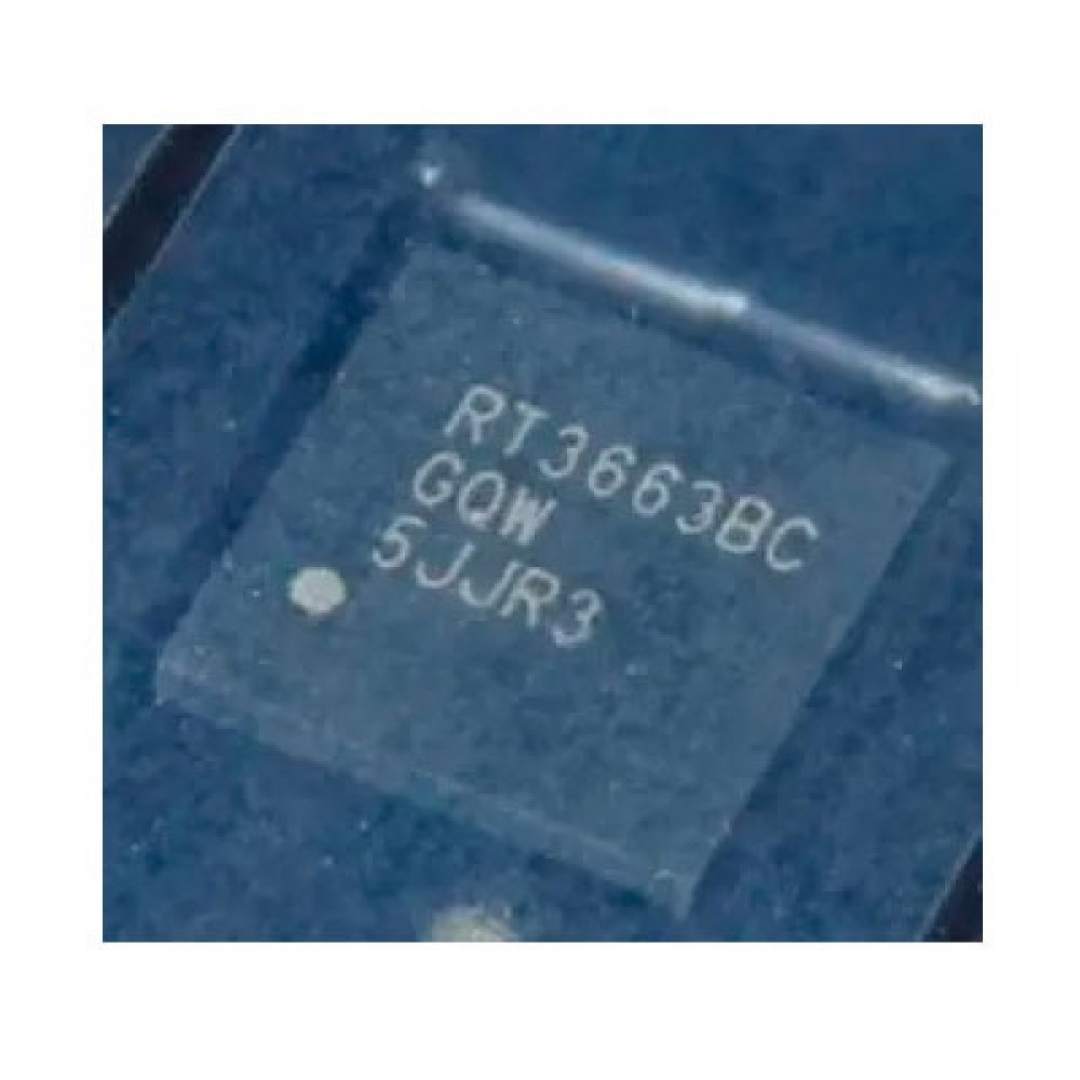

OUTROS PART NUMBERS PARA ESTE COMPONENTE: RT8880CGQW, RT3663BCGQW, RT8880C THE RT3663BC IS A 3 2 PHASES PWM CONTROLLER, AND IS COMPLIANT WITH AMD SVI2 VOLTAGE REGULATOR SPECIFICATION TO SUPPORT BOTH CPU CORE (VDD) AND NORTHBRIDGE PORTION OF THE CPU (VDDNB). THE RT3663BC FEATURES CCRCOT (CONSTANT CURRENT RIPPLE CONSTANT ON-TIME) WITH G-NAVP (GREEN-NATIVE AVP), WHICH IS RICHTEKS PROPRIETARY TOPOLOGY. THE G-NAVP MAKES IT AN EASY SETTING CONTROLLER TO MEET ALL AMD AVP (ADAPTIVE VOLTAGE POSITIONING) VDD/VDDNB REQUIREMENTS. THE DROOP IS EASILY PROGRAMMED BY SETTING THE DC GAIN OF THE ERROR AMPLIFIER. WITH PROPER COMPENSATION, THE LOAD TRANSIENT RESPONSE CAN ACHIEVE OPTIMIZED AVP PERFORMANCE.   THE CONTROLLER ALSO USES THE INTERFACE TO ISSUE VOTF COMPLETE AND TO SEND DIGITALLY ENCODED VOLTAGE AND CURRENT VALUES FOR THE VDD AND VDDNB DOMAINS. IT CAN OPERATE IN SINGLE PHASE AND DIODE EMULATION MODE AND REACH UP TO 90% EFFICIENCY IN DIFFERENT MODES ACCORDING TO DIFFERENT LOADING CONDITIONS. THE RT3663BC PROVIDES SPECIAL PURPOSE OFFSET CAPABILITIES BY PIN SETTING. THE RT3663BC ALSO PROVIDES POWER GOOD INDICATION, OVER-CURRENT INDICATION (OCP_L) AND DUAL OCP MECHANISM FOR AMD SVI2 CPU CORE AND NB. IT ALSO FEATURES COMPLETE FAULT PROTECTION S INCLUDING OVER-VOLTAGE, UNDER-VOLTAGE AND NEGATIVE-VOLTAGE PROTECTIONS. APPLICATIONS AMD SVI2 MOBILE CPU LAPTOP COMPUTER FEATURES 3/2/1-PHASE (VDD) 2/1/0-PHASE (VDDNB) PWM CONTROLLER 3 EMBEDDED MOSFET DRIVERS G-NAVPTM TOPOLOGY SUPPORT DYNAMIC LOAD-LINE AND ZERO LOAD-LINE DIODE EMULATION MODE AT LIGHT LOAD CONDITION SVI2 INTERFACE TO COMPLY WITH AMD POWER MANAGEMENT PROTOCOL BUILT-IN ADC FOR VOUT AND IOUT REPORTING IMMEDIATE OV, UV AND NV PROTECTIONS AND UVLO PROGRAMMABLE DUAL OCP MECHANISM 0.5% DAC ACCURACY FAST TRANSIENT RESPONSE POWER GOOD INDICATOR OVER-CURRENT INDICATOR RT3663BC CI CONTROLADOR PWM COM DRIVER MOSFET QFN-52 MAIORES DETALHES DE RT3663BC NO SITE DO FABRICANTE: HTTPS://WWW.RICHTEK.COM/HOME/PRODUCTS/VCORE/AMD-VCORE/RT3663BC?FORCEDEVICE=1EDEV TAGS DE RT3663BC: RT3663BC, DUAL-OUTPUT PWM CONTROLLER WITH 3 INTEGRATED DRIVERS FOR AMD SVI2 MOBILE CPU POWER SUPPLY, RT8880CGQW, RT8880, RT3663BCGQW, RT8880C

Informações Adicionais
