Especificações Técnicas

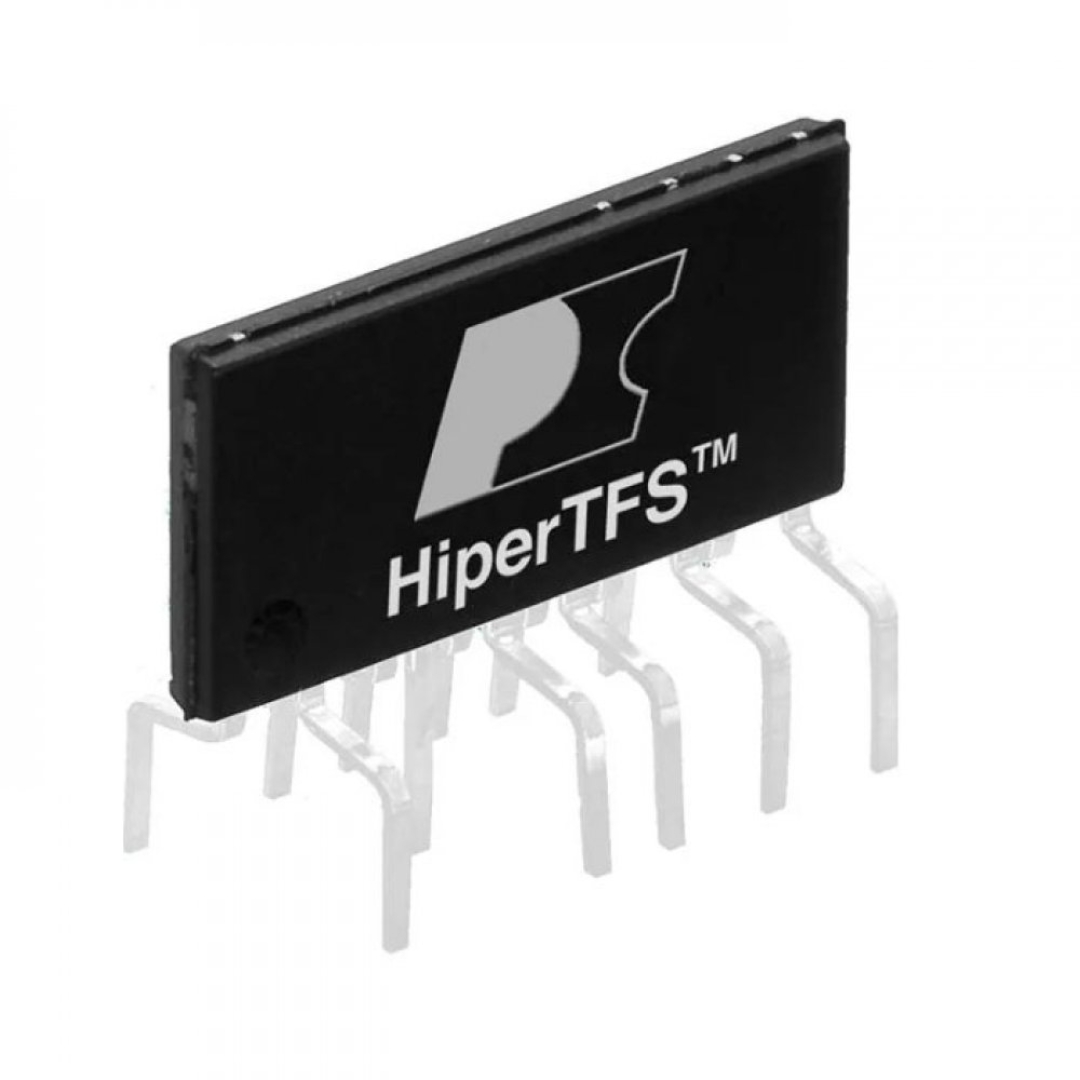

KEY BENEFITS SINGLE CHIP SOLUTION FOR TWO-SWITCH FORWARD MAIN AND FLYBACK STANDBY HIGH INTEGRATION ALLOWS SMALLER FORM FACTOR AND HIGHER POWER DENSITY DESIGNS INCORPORATES CONTROL, GATE DRIVERS, AND THREE POWER MOSFETS LEVEL SHIFT TECHNOLOGY ELIMINATES NEED FOR PULSE TRANSFORMER PROTECTION FEATURES INCLUDE: UV, OV, OTP, OCP, AND SCP TRANSFORMER RESET CONTROL PREVENTS TRANSFORMER SATURATION UNDER ALL CONDITIONS ALLOWS >50% DUTY CYCLE OPERATION REDUCES PRIMARY SIDE RMS CURRENTS AND CONDUCTION LOSSES STANDBY SUPPLY PROVIDES BUILT-IN OVERLOAD POWER COMPENSATION UP TO 434 W TOTAL OUTPUT POWER IN A HIGHLY COMPACT PACKAGE UP TO 550 W PEAK HIGH EFFICIENCY SOLUTION EASILY ENABLES DESIGN TO MEET STRINGENT EFFICIENCY SPECIFICATIONS >90% EFFICIENCY AT FULL LOAD NO-LOAD REGULATION AND LOW LOSSES AT LIGHT-LOAD SIMPLE CLIP MOUNTING TO HEAT SINK WITHOUT NEED FOR INSULATION PAD HALOGEN FREE AND ROHS COMPLIANT   APPLICATIONS PC PRINTER LCD TV VIDEO GAME CONSOLES HIGH-POWER ADAPTERS INDUSTRIAL AND APPLIANCE HIGH-POWER ADAPTERS     MANUFACTURER: POWER INTEGRATIONS PRODUCT CATEGORY: SWITCHING CONTROLLERS     NUMBER OF OUTPUTS: 1 OUTPUT SWITCHING FREQUENCY: 66 KHZ DUTY CYCLE - MAX: 73 % OUTPUT VOLTAGE: 100 V TO 400 V MOUNTING STYLE: THROUGH HOLE PACKAGE / CASE: ESIP-16B PACKAGING: TUBE BRAND: POWER INTEGRATIONS OUTPUT POWER: 383 W PRODUCT: VOLTAGE CONVERTERS PRODUCT TYPE: SWITCHING CONTROLLERS SERIES: HIPERTFS-2 TFS761HG CI COMBINED TWO-SWITCH FORWARD AND FLYBACK TAGS DE TFS761HG: TFS757-764HG, TFS761HG, TFS 761HG, TFS761 HG, ESIP12, ESIP-16B

Informações Adicionais
