Especificações Técnicas

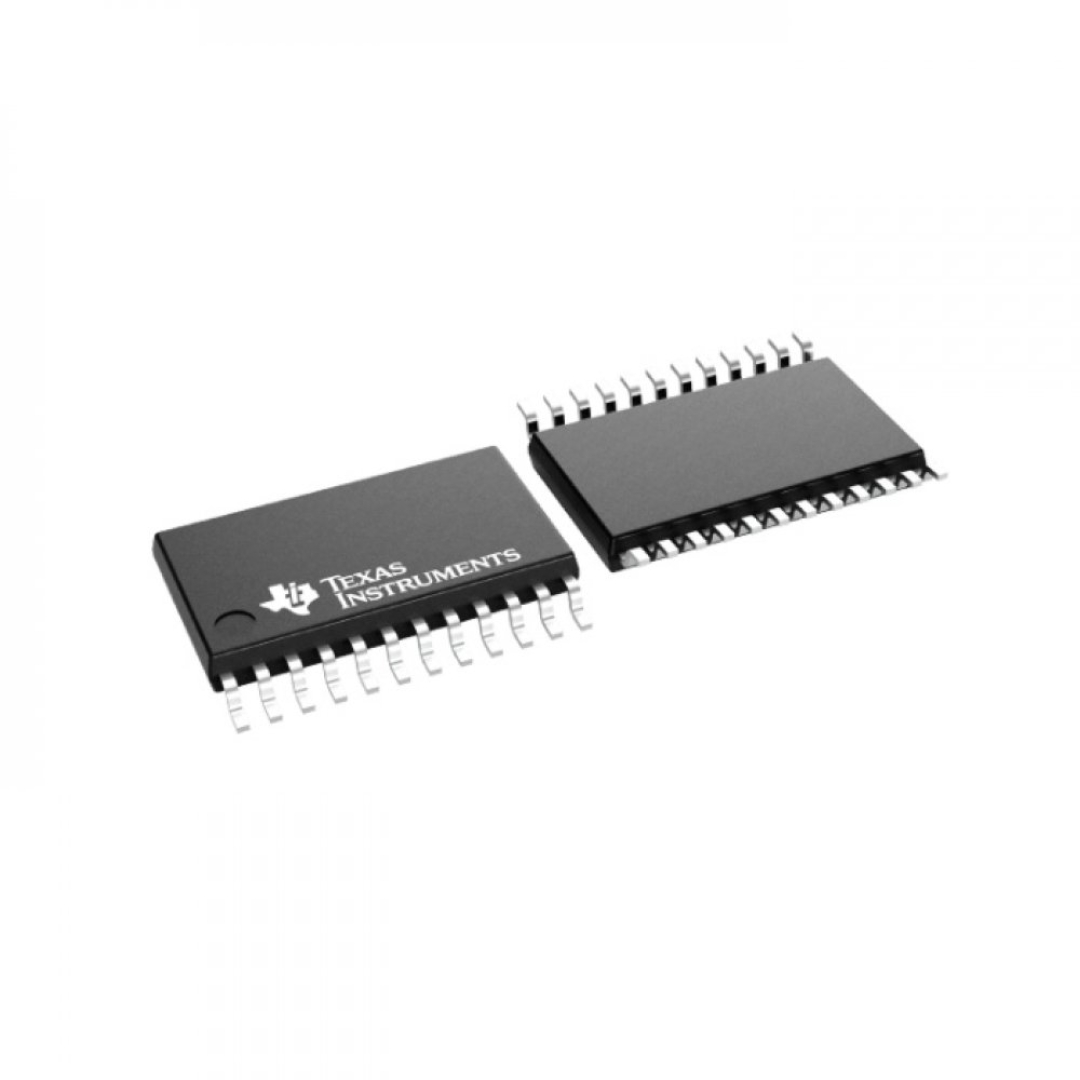

THE SN74CBTD3861 PROVIDES TEN BITS OF HIGH-SPEED TTL-COMPATIBLE BUS SWITCHING. THE LOW ON-STATE RESISTANCE OF THE SWITCH ALLOWS CONNECTIONS TO BE MADE WITH MINIMAL PROPAGATION DELAY. A DIODE TO VCC IS INTEGRATED ON THE DIE TO ALLOW FOR LEVEL SHIFTING FROM 5-V SIGNALS AT THE DEVICE INPUTS TO 3.3-V SIGNALS AT THE DEVICE OUTPUTS. THE DEVICE IS ORGANIZED AS ONE 10-BIT SWITCH WITH A SINGLE OUTPUT-ENABLE (OE) INPUT. WHEN OE IS LOW, THE SWITCH IS ON, AND PORT A IS CONNECTED TO PORT B. WHEN OE IS HIGH, THE SWITCH IS OPEN, AND THE HIGH-IMPEDANCE STATE EXISTS BETWEEN THE TWO PORTS.     MANUFACTURER: TEXAS INSTRUMENTS PRODUCT CATEGORY: DIGITAL BUS SWITCH ICS ROHS:   NUMBER OF BITS: 10 BIT ON RESISTANCE - MAX: 7 OHMS PROPAGATION DELAY - MAX: 350 PS OPERATING SUPPLY VOLTAGE: 5 V MINIMUM OPERATING TEMPERATURE: - 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: QSOP-24 PACKAGING: REEL PACKAGING: CUT TAPE PACKAGING: MOUSEREEL BRAND: TEXAS INSTRUMENTS HEIGHT: 1.5 MM LENGTH: 8.75 MM LOGIC TYPE: CMOS MOISTURE SENSITIVE: YES ORGANIZATION: 10 X 1:1 PRODUCT TYPE: DIGITAL BUS SWITCH ICS SERIES: SN74CBTD3861 SN74CBTD3861DBQR CI CBTD3861 DIGITAL BUS SWITCH SMD QSOP-24 MAIORES DETALHES DE SN74CBTD3861DBQR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/SN74CBTD3861.PDF?TS=1643379782459&REF_URL=HTTP TAGS DE SN74CBTD3861DBQR: CBTD3861, 3861, SN74CBTD3861DBQR, SN74CB, SN74CBTD, SN74C, CN74, 74CBTD, 74CBTD3861

Informações Adicionais
