Especificações Técnicas

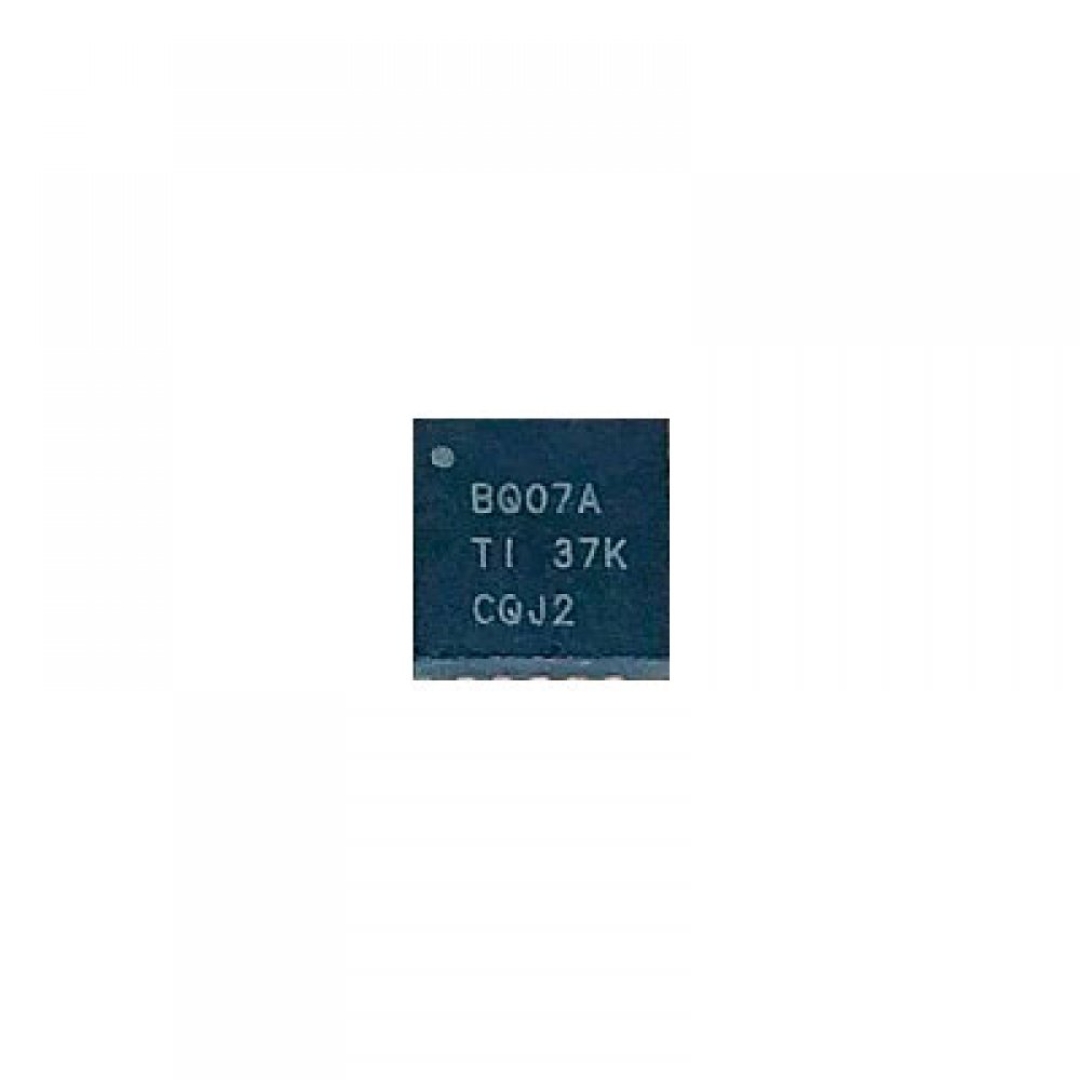

OUTROS PART NUMBERS PARA ESTE COMPONENTE: BQ24707A NUMBER OF SERIES CELLS: 1, 2, 3, 4 CHARGE CURRENT (MAX) (A): 10 OPERATING VIN (MAX) (V): 24 CELL CHEMISTRY: LI-ION / LI-POLYMER BATTERY CHARGE VOLTAGE (MIN) (V): 1.024 BATTERY CHARGE VOLTAGE (MAX) (V):19.2 ABSOLUTE VIN (SAFETY RATING) (MAX) (V): 30 CONTROL INTERFACE: SMBUS FEATURES - INPUT OVP - POWER PATH - OPERATING VIN (MIN) (V): 4.5V   SMBUS HOST-CONTROLLED NMOS-NMOS SYNCHRONOUS BUCK CONVERTER WITH PROGRAMMABLE 615 KHZ, 750 KHZ, AND 885 KHZ SWITCHING FREQUENCY REAL-TIME SYSTEM CONTROL ON ILIM PIN TO LIMIT CHARGE CURRENT ENHANCED SAFETY FEATURES FOR OVERVOLTAGE PROTECTION, OVERCURRENT PROTECTION, BATTERY, INDUCTOR, AND MOSFET SHORT-CIRCUIT PROTECTION PROGRAMMABLE INPUT CURRENT, CHARGE VOLTAGE, CHARGE CURRENT LIMITS ±0.5% CHARGE VOLTAGE ACCURACY UP TO 19.2 V ±3% CHARGE CURRENT ACCURACY UP TO 8.128 A ±3% INPUT CURRENT ACCURACY UP TO 8.064 A ±2% 20× ADAPTER CURRENT OR CHARGE CURRENT OUTPUT ACCURACY PROGRAMMABLE ADAPTER DETECTION AND INDICATOR INDEPENDENT COMPARATOR WITH INTERNAL REFERENCE INTEGRATED SOFT-START INTEGRATED LOOP COMPENSATION AC ADAPTER OPERATING RANGE 5 V TO 24 V BQ07A CI BQ24707A CONTROLADOR DE CARGA DE BATERIA LI-ION MAIORES DETALHES DE BQ07A NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/BQ24707A.PDF?TS=1674658881028&REF_URL=HTTPS%25 TAGS DE BQ07A: 24707A, BQ24707ARGRR, BQ24707A, BQ07A, BQ707A, BQ 24707A, BQ07A, BQ07, 1-4 CELL LI-ION BATTERY CHARGE CONTROLLER WITH INDEPENDENT COMPARATOR AND ADVANCED CIRCUIT PROT

Informações Adicionais
