Especificações Técnicas

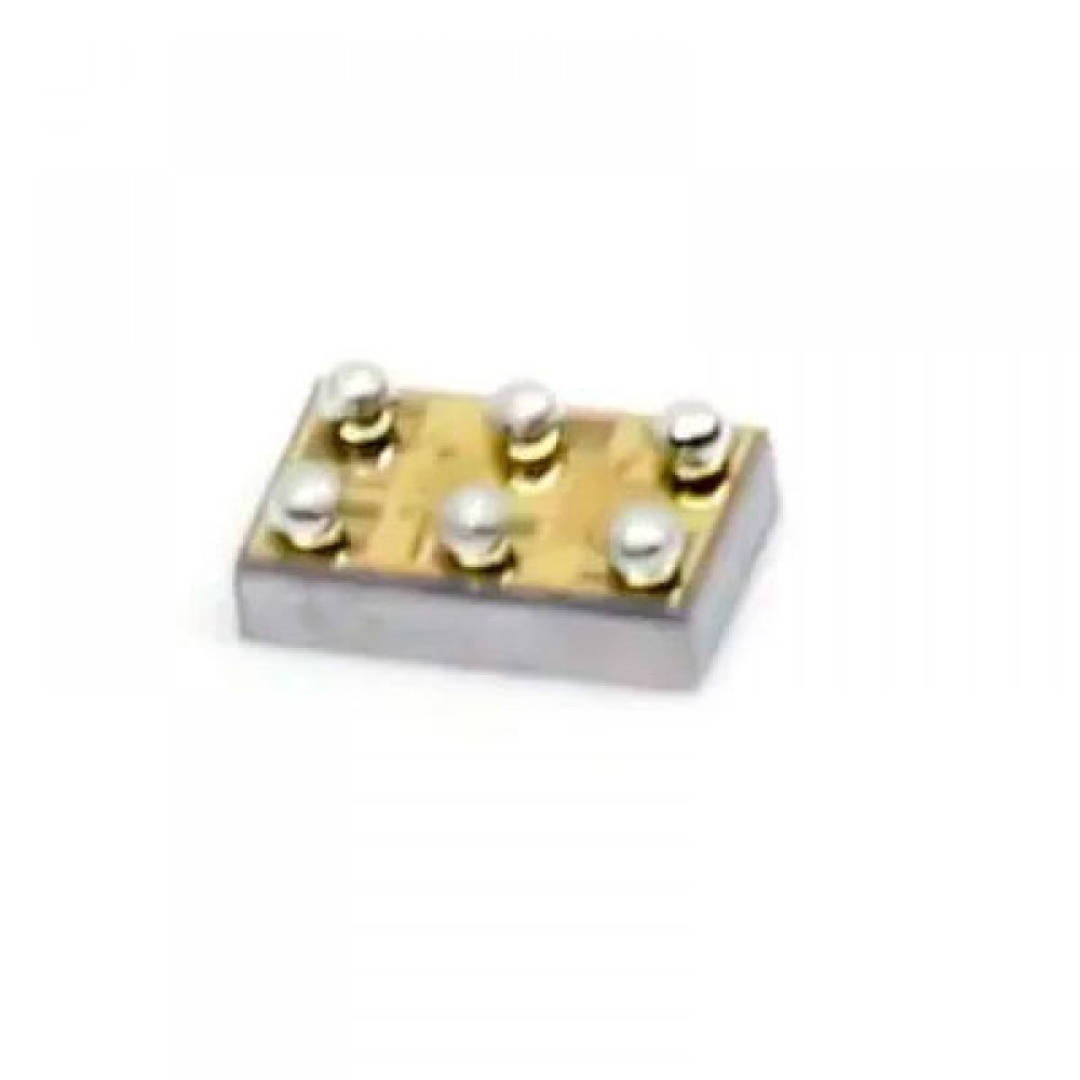

OUTROS PART NUMBERS PARA ESTE COMPONENTE: TS5A3159 1 5V 2:1 SPDT, 1 CHANNEL GENERAL PURPOSE ANALOG SWITCH WITH POWERED OFF PROTECTION   FEATURES FOR THE TS5A3159A SPECIFIED BREAK-BEFORE-MAKE SWITCHING ISOLATION IN POWER-DOWN MODE, V   0 TERMINAL COMPATIBLE WITH TS5A3159 DEVICE LOW ON-STATE RESISTANCE (1 ) CONTROL INPUTS ARE 5.5-V TOLERANT LOW CHARGE INJECTION EXCELLENT ON-STATE RESISTANCE MATCHING LOW TOTAL HARMONIC DISTORTION (THD) 1.65-V TO 5.5-V SINGLE-SUPPLY OPERATION LATCH-UP PERFORMANCE EXCEEDS 100 MA PER JESD 78, CLASS II ESD PERFORMANCE TESTED PER JESD 2000-V HUMAN-BODY MODEL (A114-B, CLASS II) 1000-V CHARGED-DEVICE MODEL (C101) PRODUCT STATUS ACTIVE SWITCH CIRCUIT SPDT MULTIPLEXER/DEMULTIPLEXER CIRCUIT 2:1 NUMBER OF CIRCUITS 1 ON-STATE RESISTANCE (MAX) 900MOHM CHANNEL-TO-CHANNEL MATCHING (EDELTA;RON) 50MOHM VOLTAGE - SUPPLY, SINGLE (V ) 1.65V ~ 5.5V VOLTAGE - SUPPLY, DUAL (V) - SWITCH TIME (TON, TOFF) (MAX) 30NS, 20NS -3DB BANDWIDTH 100MHZ CHARGE INJECTION -20PC CHANNEL CAPACITANCE (CS(OFF), CD(OFF)) 18PF CURRENT - LEAKAGE (IS(OFF)) (MAX) 20NA CROSSTALK -64DB @ 1MHZ OPERATING TEMPERATURE -40C ~ 85C (TA) MOUNTING TYPE SURFACE MOUNT PACKAGE / CASE 6-XFBGA, DSBGA SUPPLIER DEVICE PACKAGE 6-DSBGA (1.39X.89) BASE PRODUCT NUMBER TS5A3159 TS5A3159AYZPR CI ANALOG SWITCH SPDT 1-5V 2:1 SPDT 1 CHANNEL MAIORES DETALHES DE TS5A3159AYZPR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/PRODUCT/TS5A3159A/PART-DETAILS/TS5A3159AYZPR TAGS DE TS5A3159AYZPR: TS5A3159, TS5A3159AYZPR, IC SWITCH SPDTX1 900MOHM 6DSBGA, CI CHAVE LOGICA 6 TERMINAIS, CI POSITIVO 6 TERMINAIS, CI CHAVE SPDT

Informações Adicionais
