Especificações Técnicas

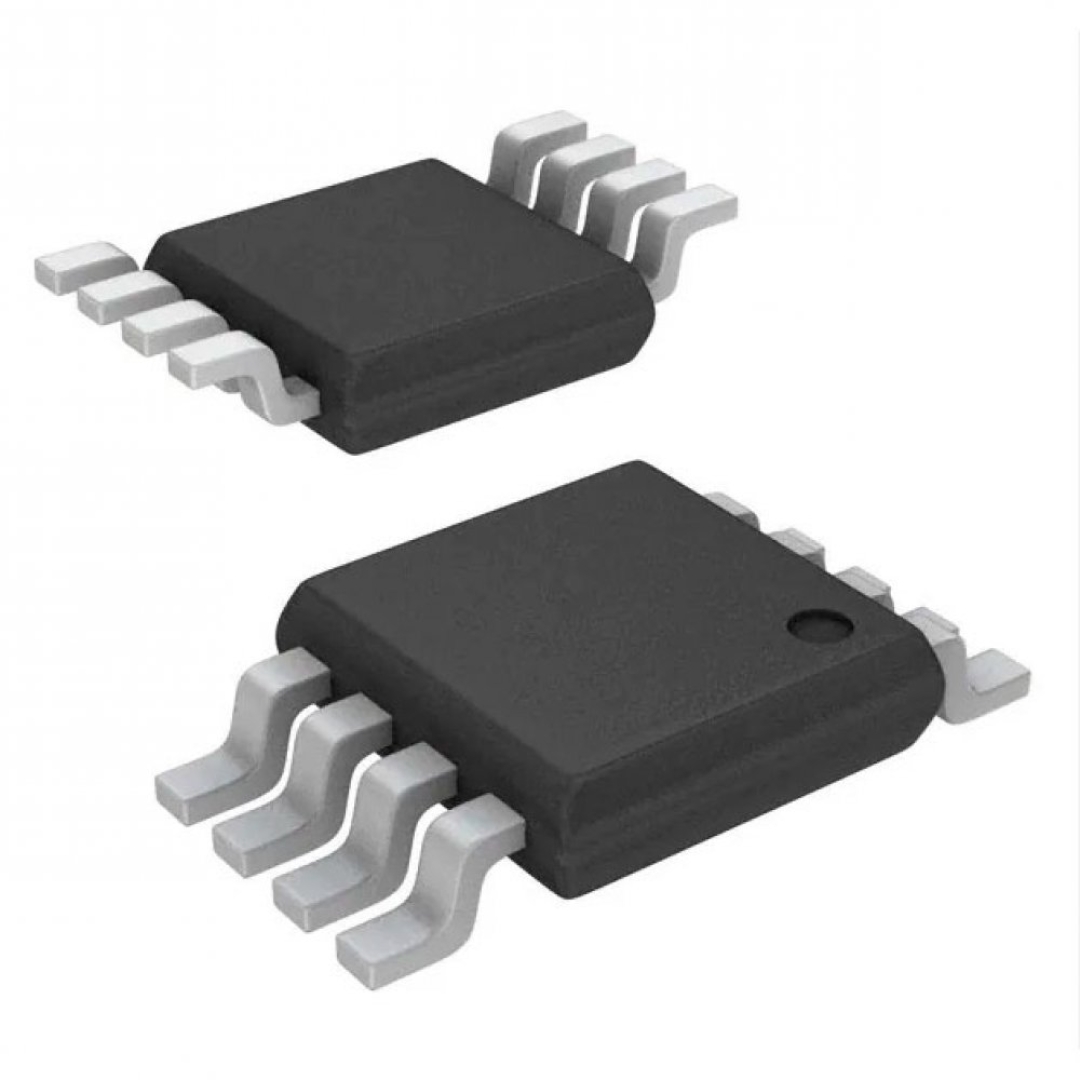

DESCRIPTION: NCT7718W IS A TEMPERATURE SENSOR WITH ONE LOCAL AND ONE REMOTE SENSOR; THE REMOTE TEMPERATURE SENSOR INPUT COULD BE CONNECTED TO THERMAL DIODE OR TRANSISTOR, SUCH AS 2N3904. A 10BIT ADC (ANALOGTODIGITAL CONVERTER) IS BUILT INSIDE NCT7718W TO CONVERT THE MONITORED TEMPERATURE VALUE WITH 0.125ºC RESOLUTION.   ADDITIONALLY, THE NCT7718W SUPPORTS 2WIRE SYSTEM MANAGEMENT BUS (SMBUS TM) SERIES INTERFACE, AND IT ALSO PROVIDES THE HARDWARE THERMAL ALERT OR SYSTEM SHUTDOWN VIA ALERT# AND T_CRIT# PIN.   THE NCT7718W IS A HIGH PRECISION, LOWPOWER CONSUMPTION IC SUPPORTING SMBUSTM INTERFACE, WHICH IS SPECIFICALLY DESIGNED FOR THE PC, NOTEBOOK APPLICATIONS, AND ANY EMBEDDED ENVIRONMENTS. ITS AVAILABLE PACKAGE IS 8PIN MSOP, WITH THE WORKING VOLTAGE OF 3.3V   FEATURES: 2.1 TEMPERATURE MEASUREMENT MEASURE THE TEMPERATURE WITH HIGH ACCURACY ONE LOCAL ONDIE THERMAL SENSOR ONE REMOTE TEMPERATURE SENSOR WITH CURRENT MODE 2.2 OVER TEMPERATURE SUPPORTS 2 ALERT OUTPUTS : ALERT# AND T_CRIT# T_CRIT# POINT SUPPORTS HARDWARE POWERON SETTING ALERT# OUTPUT SUPPORTS SMBUSTM 2.0 ARA 2.3 GENERAL I 2C COMPATIBLE SYSTEM MANAGEMENT BUS (SMBUSTM) 3.3V5% VDD OPERATION 8PIN MSOP GREEN PACKAGE (HALOGENFREE) NCT7718W CI 7718W NUVOTON THERMAL SENSOR MSOP-8 MAIORES DETALHES DE NCT7718W NO SITE DO FABRICANTE: HTTPS://WWW.NUVOTON.COM/EXPORT/RESOURCE-FILES/NUVOTON_NCT7718W_DATASHEET_V11.PDF TAGS DE NCT7718W: NCT7718W, NCT7718WTR, 7718, NCT7718, 7718W 943GB

Informações Adicionais
