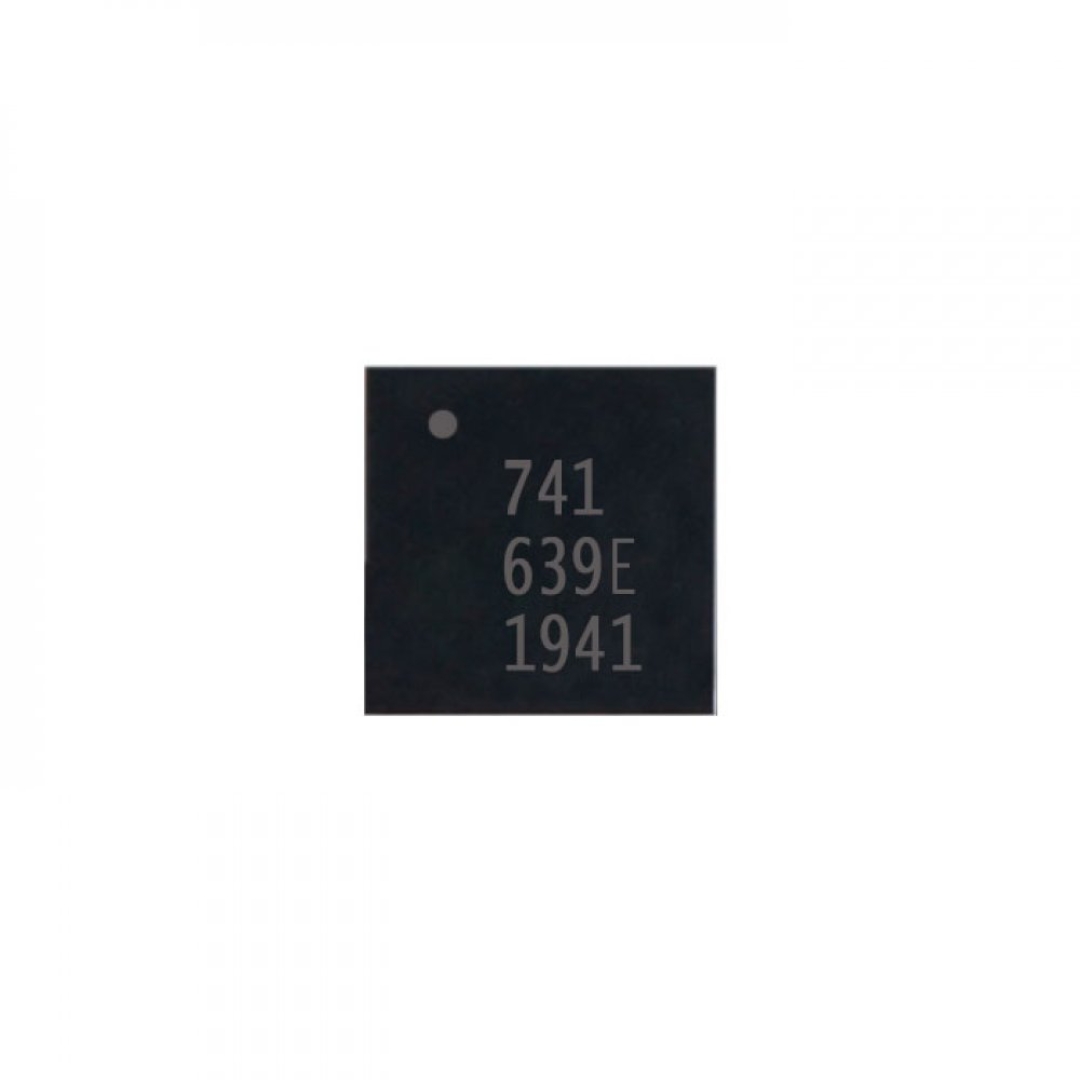

OUTROS PART NUMBERS PARA ESTE COMPONENTE: 639E THE RTC5639E IS A RF FRONTEND MODULE (FEM) WITH TRANSMIT/RECEIVE CHAIN FOR 802.11A/N/AC WLAN APPLICATIONS, WHICH OPERATES FROM A SINGLE 5 V OR 3.3 V POWER SUPPLY. THE DEVICE CONSISTS OF A POWER AMPLIFIER (PA) WITH POWER DETECTOR, A SPDT TRANSMIT/RECEIVE (T/R) SWITCH AND A RX LOWNOISE AMPLIFIER (LNA) WITH BYPASS MODE.  THE RF PORTS HAVE INTEGRATED DC BLOCKING CAPACITOR AND ARE FULLY MATCHED TO 50 OHMS WHICH MAKE SYSTEM INTEGRATION EASY AND SIMPLE.  THE RTC5639E IS PACKAGED IN 16LEAD SURFACE MOUNT PACKAGE QFN 3.0MM X 3.0MM X 1.0MM (MAX) WITH LEADFREE ROHS COMPLIANT.   FEATURES FREQUENCY RANGE : 5.15 5.85 GHZ 5 V OR 3.3 V SINGLE SUPPLY VOLTAGE INTEGRATED HIGH PERFORMANCE PA, LNA WITH BYPASS , AND SPDT SWITCH INPUT E OUTPUT FULLY 50 OHM MATCHING OUTPUT POWER : 21 DBM @ 35 DB DEVM, 802.11AC, MCS9, VHT80, 5 V 18.5 DBM @ 35 DB DEVM, 802.11AC, MCS9, VHT80, 3.3 V 23 DBM @ 30 DB DEVM, 802.11N, MCS7, HT20/40, 5 V 19.5 DBM @ 30 DB DEVM, 802.11N, MCS7, HT20/40, 3.3V PACKAGE IN 16L QFN 3.0MM X 3.0MM X 1.0MM (MAX) ROHS COMPLIANT, PBFREE, HALOGEN FREE MOISTURE SENSITIVITY LEVEL : MSL 3 APPLICATIONS IEEE 802.11A/N/AC WIRELESS LAN SYSTEMS 5GHZ ISM BAND APPLICATIONS  CARDBUS, MINIPCI, PCIE, AP APPLICATIONS RTC5639E CI 639E RF 5GHZ FRONT END MODULE PARA 802.11A/N/AC MAIORES DETALHES DE RTC5639E NO SITE DO FABRICANTE: HTTPS://DATASHEET.LCSC.COM/SZLCSC/1912251012_RICHWAVE-RTC5639E_C474877.PDF TAGS DE RTC5639E: RICHWAVE RTC5639E, CI 628 639E, CI 628, CI 639, IC 639E, IC 639, RTC7635, CI WIFI 5 FEM 5GHZ
