Especificações Técnicas

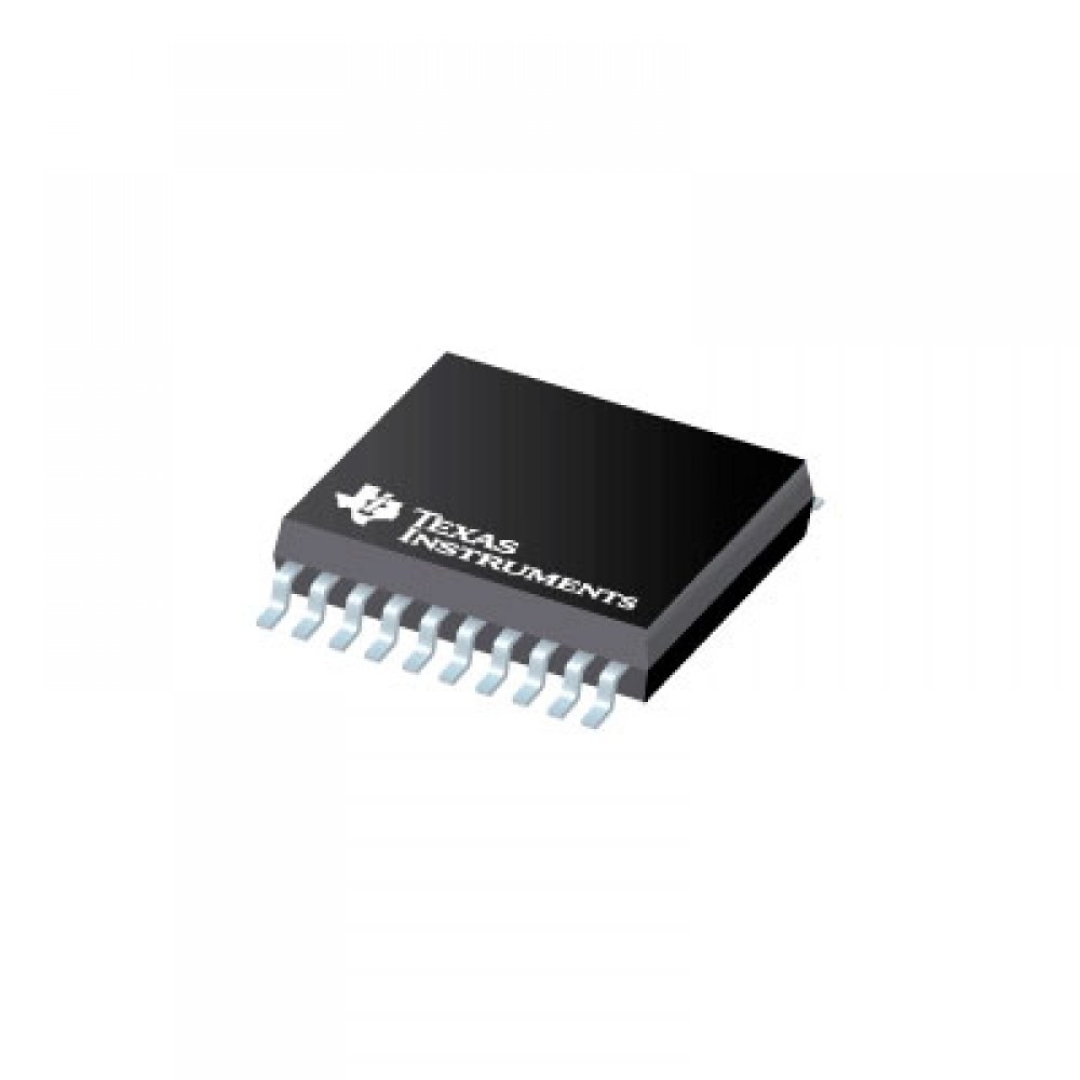

DESCRIPTION FOR THE TPS55065Q1 THE TPS55065 IS A SWITCHEDMODE REGULATOR WITH INTEGRATED SWITCHES FOR VOLTAGEMODE CONTROL. WITH THE AID OF EXTERNAL COMPONENTS (LC COMBINATION), THE DEVICE REGULATES THE OUTPUT TO 5 V 3% FOR A WIDE INPUTVOLTAGE RANGE. THE TPS55065 DEVICE OFFERS A RESET TO DETECT AND INDICATE WHEN THE 5V OUTPUT RAIL IS OUTSIDE OF THE SPECIFIED TOLERANCE. THIS RESET DELAY IS PROGRAMMABLE USING AN EXTERNAL TIMING CAPACITOR ON THE REST TERMINAL. ADDITIONALLY, AN ALARM (AOUT) FEATURE IS ACTIVATED WHEN THE INPUT SUPPLY RAIL VDRIVER IS BELOW A PRESCALED SPECIFIED VALUE (SET BY THE AIN TERMINAL).   THE TPS55065 DEVICE HAS A FREQUENCYMODULATION SCHEME TO MINIMIZE EMI. THE CLOCK MODULATOR PERMITS A MODULATION OF THE SWITCHING FREQUENCY TO REDUCE INTERFERENCE ENERGY IN THE FREQUENCY BAND. THE 5VG OUTPUT IS A SWITCHED 5V REGULATED OUTPUT WITH INTERNAL CURRENT LIMITING TO PREVENT ASSERTION OF RESET WHEN POWERING A CAPACITIVE LOAD ON THE SUPPLY LINE. THIS IS CONTROLLED BY THE 5VG_ENABLE TERMINAL. IF THERE IS A SHORT TO GROUND ON THIS OUTPUT (5VG OUTPUT), THE OUTPUT SELFPROTECTS BY OPERATING IN A CHOPPING MODE. THIS DOES, HOWEVER, INCREASE THE OUTPUT RIPPLE VOLTAGE ON VOUT DURING THIS FAULT CONDITION. FEATURES FOR THE TPS55065Q1 QUALIFIED FOR AUTOMOTIVE APPLICATIONS AECQ100 QUALIFIED WITH THE FOLLOWING RESULTS DEVICE TEMPERATURE GRADE 1: 40C TO 125C AMBIENT OPERATING TEMPERATURE RANGE DEVICE HBM ESD CLASSIFICATION LEVEL 1B DEVICE CDM ESD CLASSIFICATION LEVEL C4B SWITCHEDMODE REGULATOR 5 V 2%, NORMAL MODE 5 V 3%, LOWPOWER OR CROSSOVER MODE SWITCHING FREQUENCY, 440 KHZ (TYPICAL) INPUT OPERATING RANGE, 1.5 V TO 40 V, (VDRIVER) 500MA LOADCURRENT CAPABILITY 200MA LOADCURRENT CAPABILITY DOWN TO 2V INPUT (VDRIVER) 120MA LOADCURRENT CAPABILITY DOWN TO 1.5V INPUT (VDRIVER) ENABLE FUNCTION LOWPOWER OPERATION MODE SWITCHED 5V REGULATED OUTPUT ON 5VG WITH CURRENT LIMIT PROGRAMMABLE SLEW RATE AND FREQUENCY MODULATION FOR EMI CONSIDERATION RESET FUNCTION WITH DEGLITCH TIMER AND PROGRAMMABLE DELAY ALARM FUNCTION FOR UNDERVOLTAGE DETECTION AND INDICATION THERMALLY ENHANCED PACKAGE FOR EFFICIENT HEAT MANAGEMENT TPS55065QPWPRQ1 CI 55065Q REGULADOR DC/DC 1.5V A 40V 500MA 5V FIXO MAIORES DETALHES DE TPS55065QPWPRQ1 NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/PRODUCT/TPS55065-Q1/PART-DETAILS/TPS55065QPWPRQ1 TAGS DE TPS55065QPWPRQ1: TPS55065QPWPRQ1, TPS55065Q, TPS55065QPWPR, BUCK-BOOST CONVERTER, BUCK BOOST CONVERTER, BUCK CONVERTER, BOOST CONVERTER, 20HTSSOP

Informações Adicionais
