Especificações Técnicas

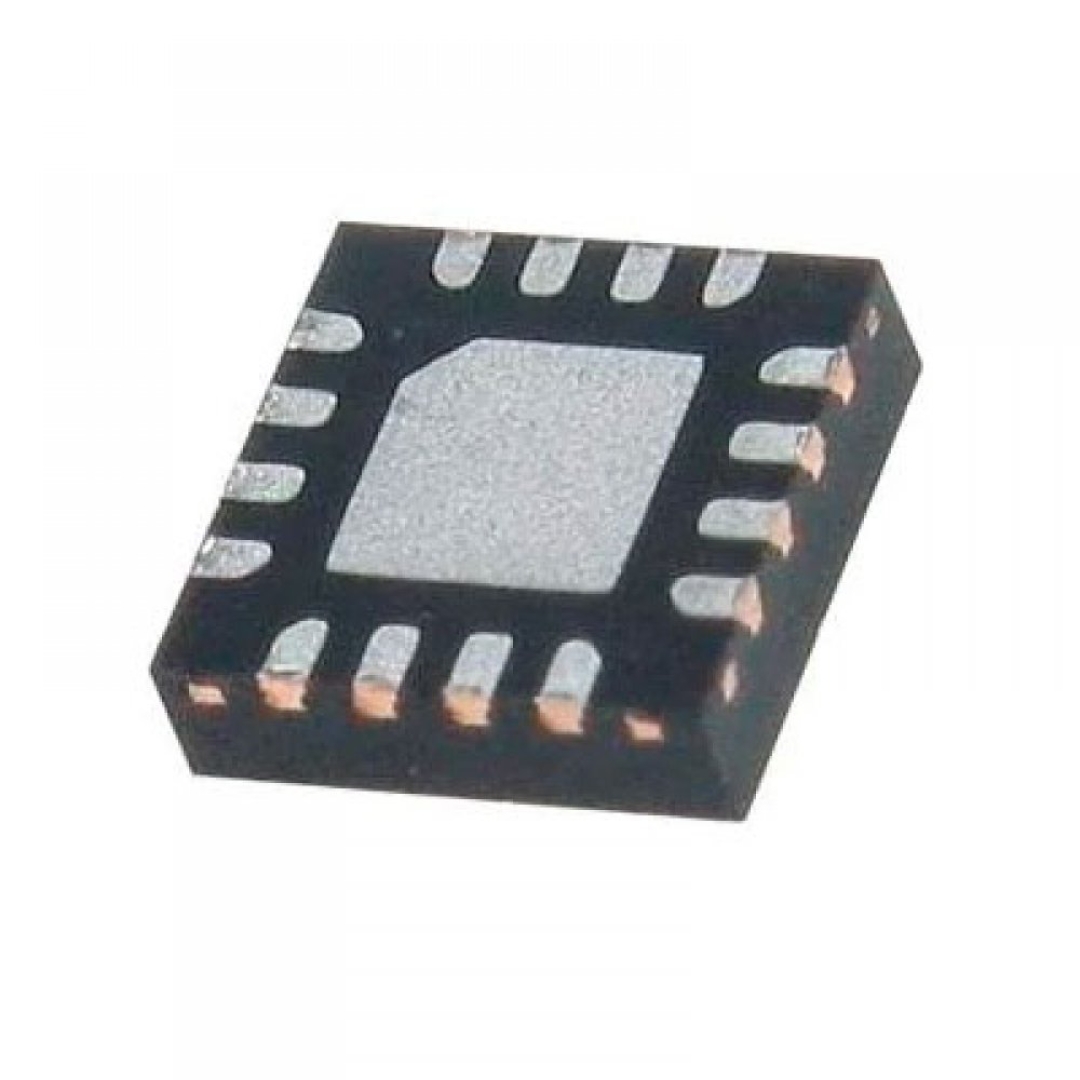

THE PE42553 IS A HARPTM TECHNOLOGYENHANCED ABSORPTIVE SPDT RF SWITCH THAT SUPPORTS A BROAD FREQUENCY RANGE FROM 9 KHZ TO 8 GHZ. THIS GENERAL PURPOSE SWITCH MAINTAINS EXCELLENT LINEARITY, HIGH RF PERFORMANCE AND FAST SETTLING TIME MAKING THIS DEVICE IDEAL FOR TEST AND MEASUREMENT (TEM), AUTOMATED TEST EQUIPMENT (ATE) AND OTHER HIGH PERFORMANCE WIRELESS APPLICATIONS. THE PE42553 IS A PINCOMPATIBLE VERSION OF THE PE42552 WITH IMPROVED POWER HANDLING CAPABILITY OF 36 DBM CONTINUOUS WAVE (CW) AND 38 DBM PULSED POWER IN 50 AT 8 GHZ. NO BLOCKING CAPACITORS ARE REQUIRED IF DC VOLTAGE IS NOT PRESENT ON THE RF PORTS. THE PE42553 IS MANUFACTURED ON PSEMIS ULTRACMOS PROCESS, A PATENTED VARIATION OF SILICONONINSULATOR (SOI) TECHNOLOGY ON A SAPPHIRE SUBSTRATE.   FEATURES EXCELLENT POWER HANDLING: 36 DBM CW AND 38 DBM PULSED POWER IN 50 @ 8GHZ HIGH LINEARITY: IIP3 OF 66 DBM HIGH ISOLATION 45 DB @ 3 GHZ 41 DB @ 8 GHZ HARP TECHNOLOGY ENHANCED FAST SETTLING TIME NO GATE AND PHASE LAG NO DRIFT IN INSERTION LOSS AND PHASE HIGH ESD PERFORMANCE 2.5 KV HBM ON ALL PINS, 4 KV HBM ON RF PINS TO GND 1 KV CDM ON ALL PINS PACKAGING 16LEAD 3 3 MM QFN   APPLICATIONS TEST AND MEASUREMENT SIGNAL SOURCES COMMUNICATION TESTERS SPECTRUM ANALYZERS NETWORK ANALYZERS AUTOMATED TEST EQUIPMENT GENERAL PURPOSE TX/RX SWITCH PE42553B-Z CI 42553 RF SWITCH 8GHZ 36DB 16 LEAD 3X3 QFN MAIORES DETALHES DE PE42553B-Z NO SITE DO FABRICANTE: HTTPS://WWW.PSEMI.COM/PDF/DATASHEETS/PE42553DS.PDF TAGS DE PE42553B-Z: PE42553B-Z, PE42553BZ, PE42553B, PE42553, PE42553A-Z, PE42553A, PE42553, 42553

Informações Adicionais
