Especificações Técnicas

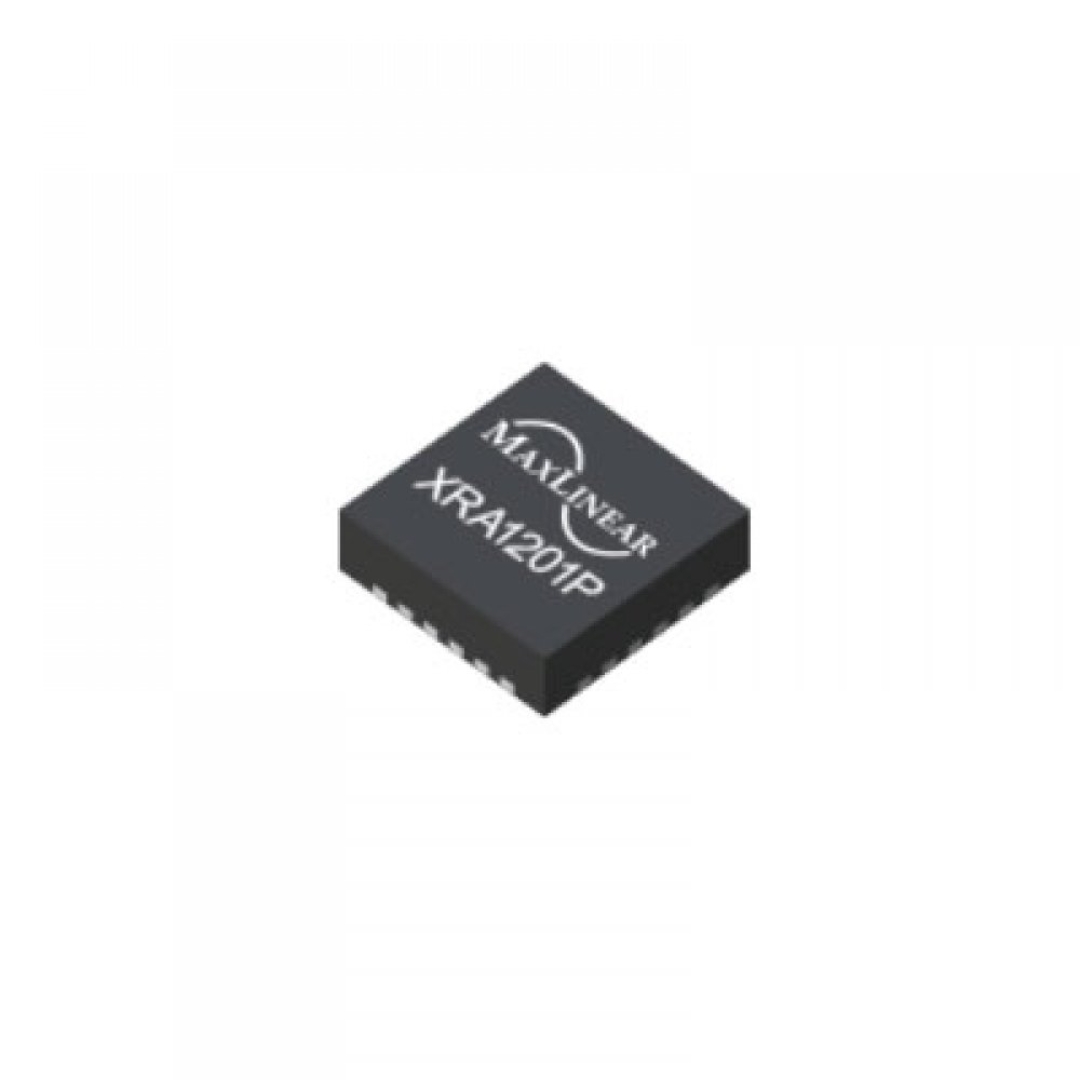

OUTROS PART NUMBERS PARA ESTE COMPONENTE: XRA1201PIL24-F MANUFACTURER: MAXLINEAR PRODUCT CATEGORY: INTERFACE - I/O EXPANDERS     NUMBER OF I/OS: 16 I/O INTERFACE TYPE: I2C, SERIAL, SMBUS MAXIMUM CLOCK FREQUENCY: 400 KHZ INTERRUPT OUTPUT: WITH INTERRUPT SUPPLY VOLTAGE - MAX: 3.6 V SUPPLY VOLTAGE - MIN: 1.65 V MINIMUM OPERATING TEMPERATURE: - 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: QFN-EP-24 ESD PROTECTION: 3 KV PACKAGING: REEL PACKAGING: CUT TAPE PACKAGING: MOUSEREEL BRAND: MAXLINEAR INPUT VOLTAGE: 5 V MOISTURE SENSITIVE: YES OPERATING SUPPLY VOLTAGE: 1.65 V TO 3.6 V OUTPUT CURRENT: 160 MA OUTPUT TYPE: OPEN DRAIN PD - POWER DISSIPATION: 200 MW PRODUCT TYPE: I/O EXPANDERS XRA1201P CI 16BIT I2C SMBUS GPIO EXPANDER 24QFN MAIORES DETALHES DE XRA1201P NO SITE DO FABRICANTE: HTTPS://WWW.MAXLINEAR.COM/PRODUCT/INTERFACE/BRIDGES/GPIO-EXPANDERS/I2C-GPIO-EXPA TAGS DE XRA1201P: XRA1201PIL24-F, XRA1201PIL24, XRA1201P, XRA1201, EXPANDERS 16 BIT I2C SMBUS GPIO EXPANDER, IC I/O PORT EXPANDER I2C 24QFN

Informações Adicionais
