Especificações Técnicas

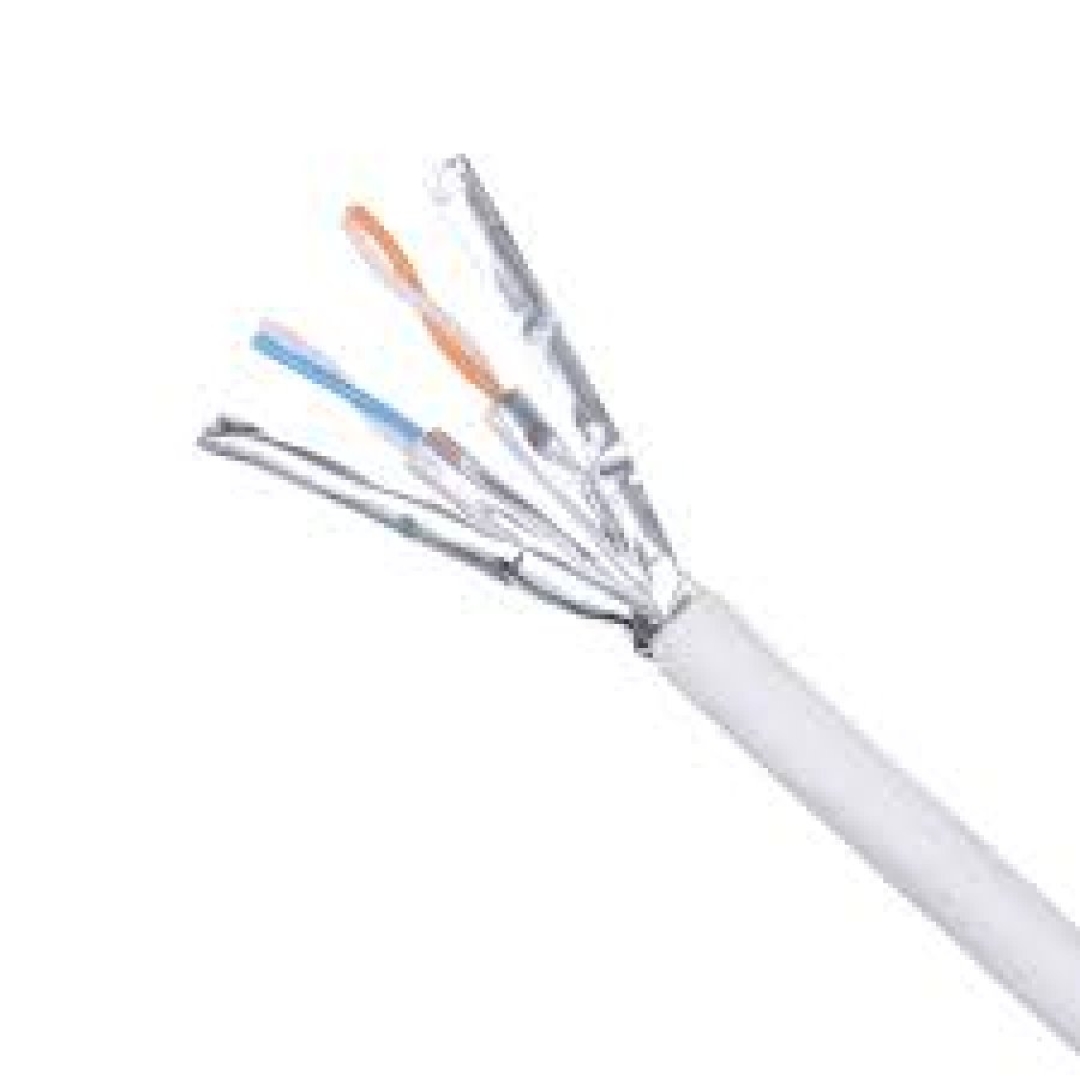

NOTE AVAILABLE IN ASIA PACIFIC, EMEA AND LATIN AMERICA ENVIRONMENT INDOOR PERFORMANCE LEVEL CATEGORY 6A CABLE CONSTRUCTION U/UTP FLAMMABILITY RATING LSZH-1 (IEC 60332-1) EUROCLASS RATING DCA-S2,D2,A1 LP RATING NA RESISTANCE PROPERTIES FLAME-RESISTANT JACKET MATERIAL HIGH DENSITY POLYETHYLENE NOMINAL CABLE OUTSIDE DIAMETER (IN.) 0.28 NOMINAL CABLE OUTSIDE DIAMETER (MM) 7.2 MAXIMUM OPERATING TEMPERATURE (°C) 60 MAXIMUM OPERATING TEMPERATURE (°F) 122 MINIMUM OPERATING TEMPERATURE (°C) -20 MINIMUM OPERATING TEMPERATURE (°F) -4 MAXIMUM INSTALLATION TEMPERATURE (°C) 60 MAXIMUM INSTALLATION TEMPERATURE (°F) 140 MINIMUM INSTALLATION TEMPERATURE (°C) 0 MINIMUM INSTALLATION TEMPERATURE (°F) 32 SUB BRAND PAN-NET® MAXIMUM INSTALLATION TENSION (LB) 25 MAXIMUM INSTALLATION TENSION (N) 110 BEND RADIUS (IN.) 1.12 BEND RADIUS (MM) 57.6 NUMBER OF PAIRS 4 CONDUCTOR MATERIAL COPPER CONDUCTOR TYPE SOLID OVERALL LENGTH (M) 305 CONDUCTOR GAUGE (AWG) 23 CONDUCTOR GAUGE (MM) 0.57 INSULATION MATERIAL PE ACIDITY RATING A1 INSULATION DIAMETER (IN.) 0.05 INSULATION DIAMETER (MM) 1.2 MAXIMUM VOLTAGE (V) 80 STANDARDS MET ROHS COMPLIANT COLOR WHITE FLAMING DROPLETS RATING D2 OVERALL LENGTH (FT.) 1000 PACKAGING TYPE REEL PRODUCT TYPE COPPER CABLE SMOKE RATING S2 EUROCLASS FLAME RATING DCA PUL6X04WH-HEG PANDUIT CABO DE REDE CAT 6A U/UTP LSZH 305M MAIORES DETALHES DE PUL6X04WH-HEG NO SITE DO FABRICANTE: HTTPS://WWW.PANDUIT.COM/EN/PRODUCTS/COPPER-SYSTEMS/BULK-COPPER-CABLE/ENTERPRISE- TAGS DE PUL6X04WH-HEG: PANDUIT, LSZH, CAT 6A
