Especificações Técnicas

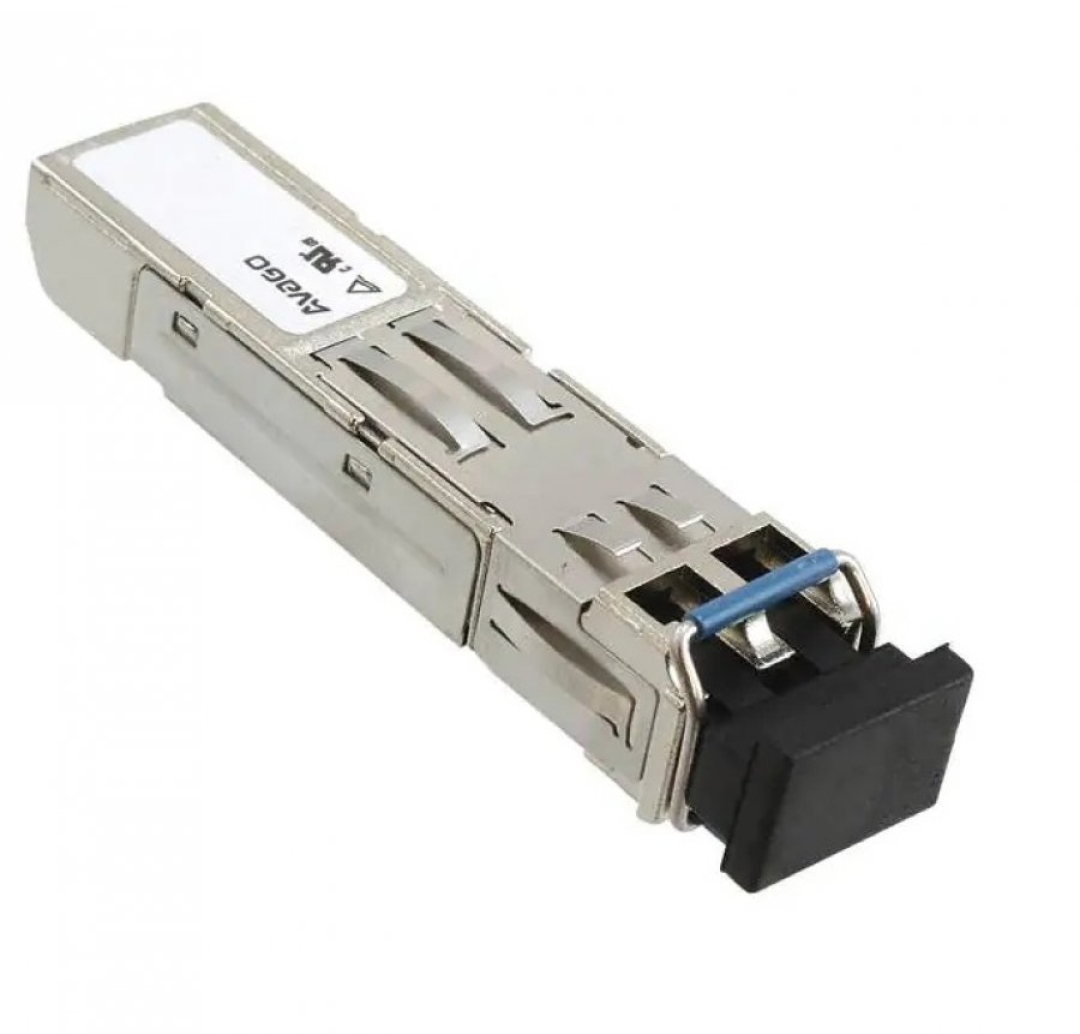

THE AVAGO AFCT-5710ALZ / AFBR-571XZ FAMILY OF SFP OPTICAL TRANSCEIVERS OFFERS A WIDE RANGE OF GIGABIT ETHERNET DESIGN OPTIONS, INCLUDING OPTIONAL DMI FEATURES, TWO TEMPERATURE RANGES, AND CHOICE OF STANDARD OR BAIL DELATCH. THE AFBR-5715Z FAMILY TARGETS THOSE APPLICATIONS REQUIRING DMI FEATURES. THE AFBR-5710Z FAMILY IS A STREAMLINED PRODUCT DESIGNED FOR THOSE APPLICATIONS WHERE DMI FEATURES ARE NOT NEEDED. [PDF] AV02-2366EN_DS_AFCT-571XZ_2012-09-12 FEATURES ROHS-6 COMPLIANT OPTIONAL DIGITAL DIAGNOSTIC MONITORING AVAILABLE AFCT-5710Z FAMILY: WITHOUT DMI AFCT-5715Z FAMILY: WITH DMI PER SFF-8472, DIAGNOSTIC FEATURES ON AFCT-5705Z FAMILY ENABLE DIAGNOSTIC MONITORING INTERFACE FOR OPTICAL TRANSCEIVERS WITH REAL-TIME MONITORING OF: TRANSMITTED OPTICAL POWER RECEIVED OPTICAL POWER LASER BIAS CURRENT TEMPERATURE SUPPLY VOLTAGE COMPLIANT TO IEEE 802.3Z GIGABIT ETHERNET (1.25 GBD) 1000BASE-LX E SMALL FORM FACTOR PLUGGABLE (SFP) MULTI-SOURCE AGREEMENT (MSA) MANUFACTURED IN AN ISO 9001 COMPLIANT FACILITY HOT-PLUGGABLE TEMPERATURE OPTIONS: (EXTENDED) -10°C TO 85°C (INDUSTRIAL) -40°C TO 85°C 3.3 V DC POWER SUPPLY 1310 NM LONGWAVE LASER EYE SAFETY CERTIFIED: US 21 CFR(J) IEC 60825-1 ( ALL) LC-DUPLEX FIBER CONNECTOR COMPATIBLE LINK LENGTHS AT 1.25 GBD: 0.5 TO 550 M 50 -M MMF 0.5 TO 550 M 62.5 -M MMF 0.5 M TO 10 KM SMF AFCT-5715APZ BROADCOM AVAGO TRANSCEIVER SFP 1.25 GBD TAGS DE AFCT-5715APZ: AFCT-5715APZ, TRANSCEIVER AFCT-5715APZ, GBIC AFCT-5715APZ, MINI GBIC AFCT-5715APZ, TRANSCEIVER AFCT5715APZ, AVAGO AFCT-5715APZ, BROADCOM AFCT-5715APZ, BROADCOM AFCT5715APZ

Informações Adicionais
