Especificações Técnicas

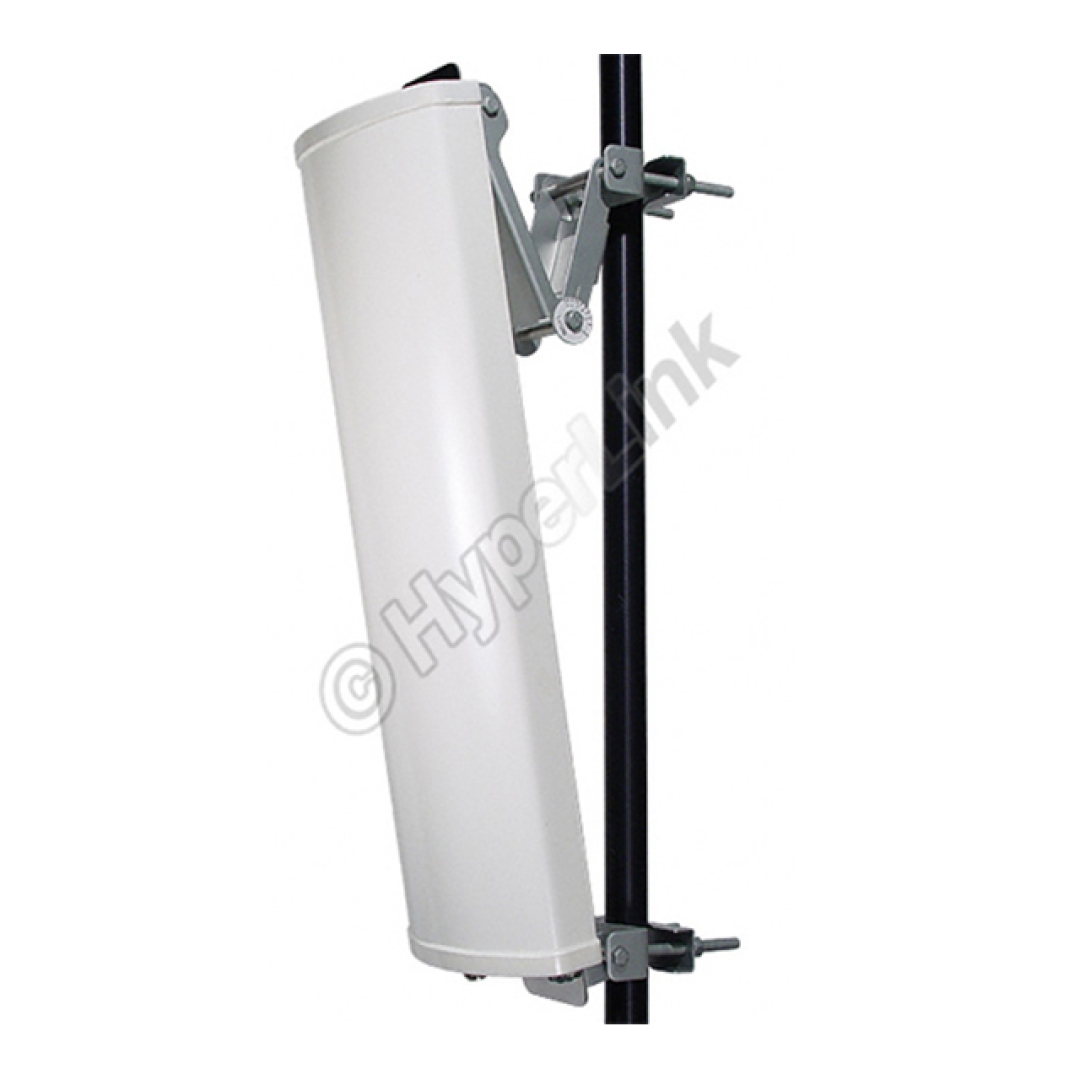

ELECTRICAL SPECIFICATIONS FREQUENCY 2400 - 2500 MHZ GAIN 14 DBI POLARIZATION VERTICAL HORIZONTAL BEAM WIDTH 90° VERTICAL BEAM WIDTH 15° IMPEDANCE 50 OHM VSWR FRONT TO BACK RATIO > 23 DB MAX. INPUT POWER 300 WATTS LIGHTNING PROTECTION DC GROUND CONNECTOR INTEGRAL N-FEMALE   MECHANICAL SPECIFICATIONS WEIGHT 4.4 LBS. (2 KG) DIMENSIONS 20 X 7 X 3.5 INCH (500 X 180 X 90 MM) RADOME MATERIAL UV-INHIBITED PLASTIC MOUNTING   2 INCH (50 MM) DIA. MAST MAX. OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) RATED WIND >130 MPH (210 KM/H) ROHS COMPLIANT YES     WIND LOADING DATA WIND SPEED (MPH) LOADING 100 32 LB. 125 49 LB.     HG2414SP-090 ANTENA SETORIAL HYPERLINK HG2414SP-090 V MAIORES DETALHES DE HG2414SP-090 NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2414SP-090: HG2414SP-090, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 14DBI, 14DBI, ANTENA 14 DBI, 14 DBI, ANTENA
