Especificações Técnicas

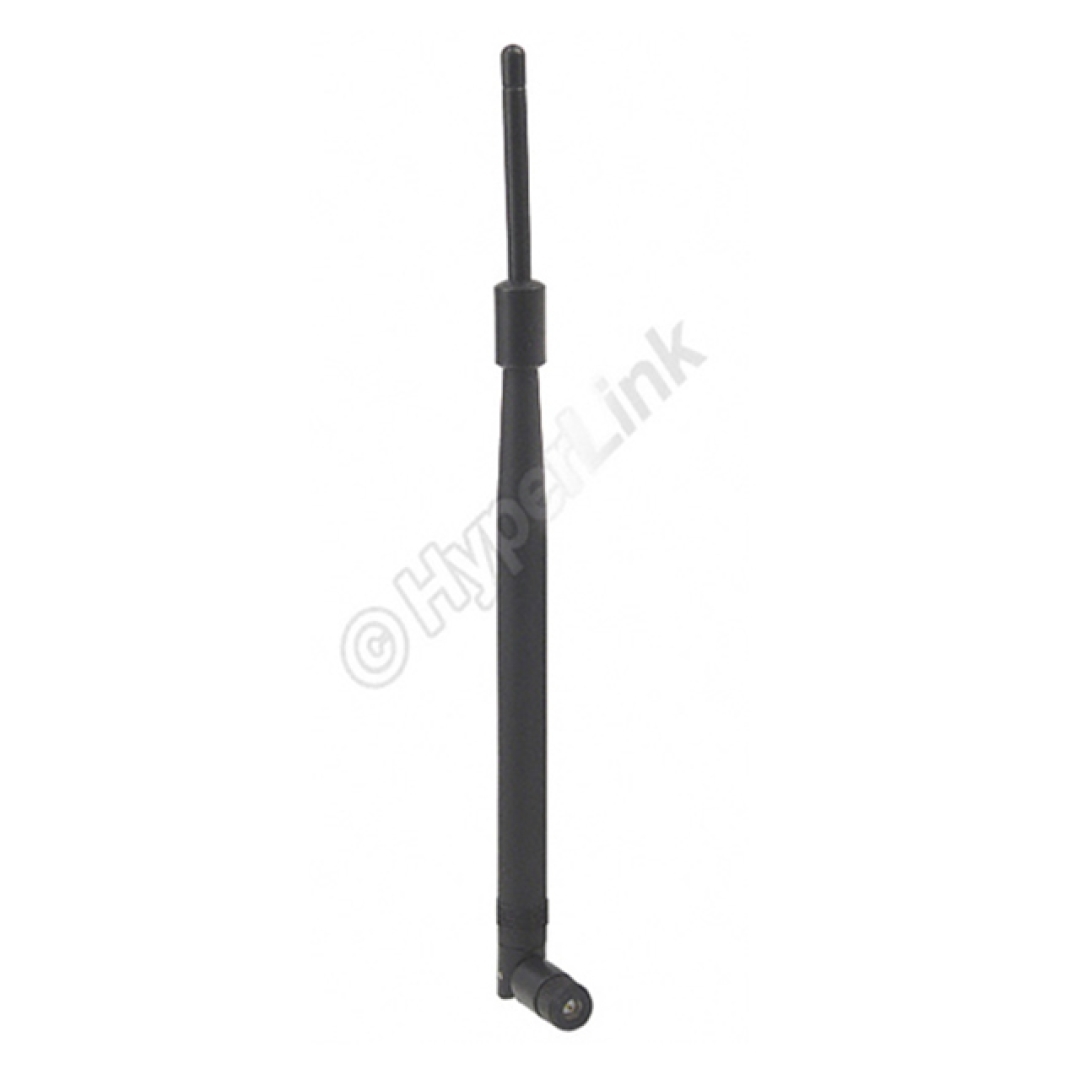

ELECTRICAL SPECIFICATIONS FREQUENCY 2400-2500 MHZ GAIN 7 DBI HORIZONTAL BEAM WIDTH 360° VERTICAL BEAM WIDTH 20° ±5° IMPEDANCE 50 OHM MAX. POWER 50W VSWR < 2.0 LIGHTNING PROTECTION DC GROUND     MECHANICAL SPECIFICATIONS WEIGHT 1.7 OZ. (50 G) LENGTH 10.6" (271 MM) MAX. DIAMETER 0.51" (12.9 MM) FINISH MATTE BLACK CONNECTOR SMA-MALE OPERATING TEMPERATURE -40° C TO TO 60° C (-40° F TO 140° F) POLARIZATION VERTICAL FLAME RATING UL 94HB ROHS COMPLIANT YES     HG2407RD-SM ANTENA OMNIDIRECIONAL HYPERLINK HG2407RD-SM - 2,4GHZ MAIORES DETALHES DE HG2407RD-SM NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2407RD-SM: HG2407RD-SM, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, ANTENA 7DBI, 7DBI, ANTENA 7 DBI, 7 DBI, ANTENA
