Especificações Técnicas

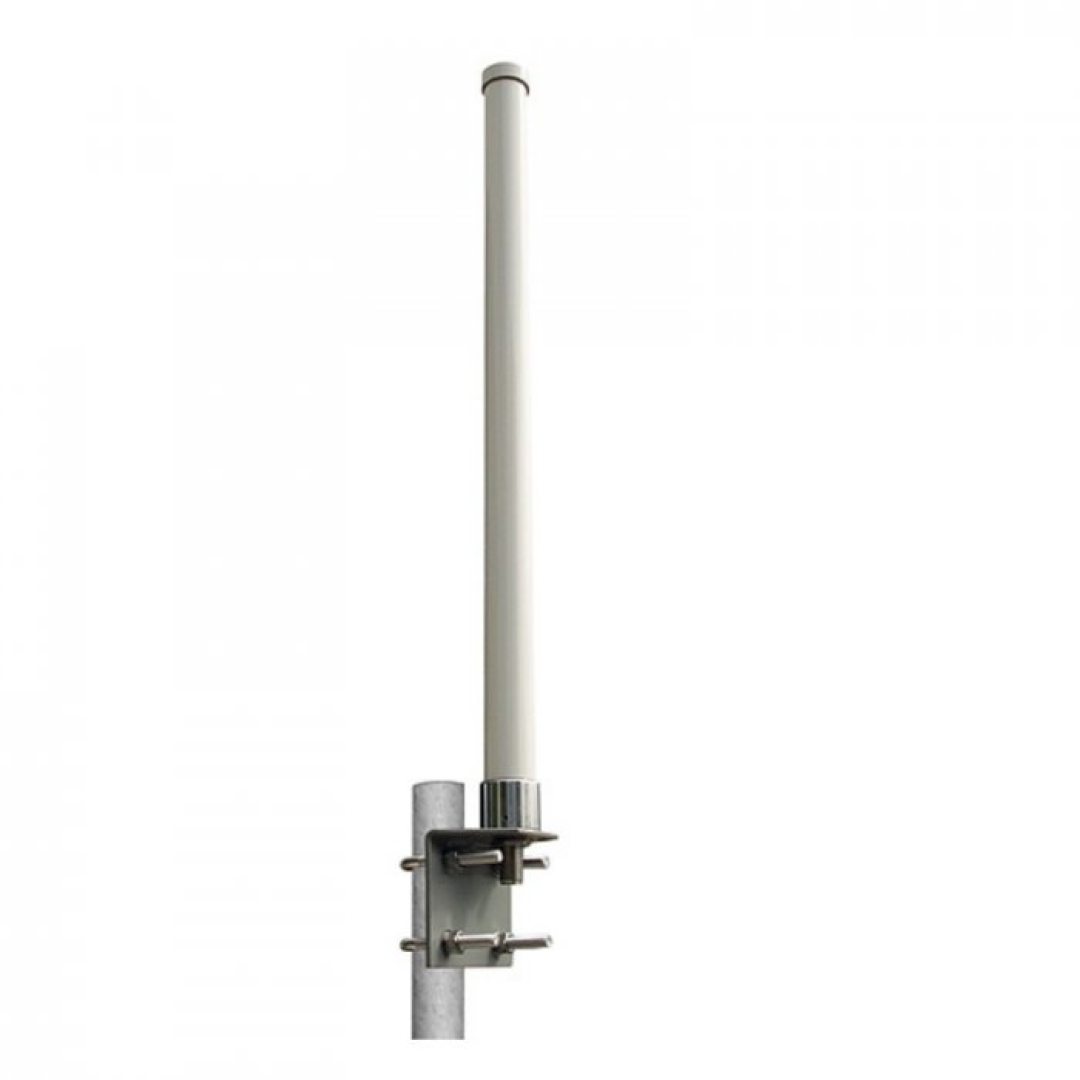

THE HYPERLINK HGV-906U IS A HIGH PERFORMANCE OMNIDIRECTIONAL ANTENNA DESIGNED FOR THE 800 MHZ / 900 MHZ ISM BAND. IT IS IDEALLY SUITED FOR MULTIPOINT, NON LINE OF SIGHT (NLOS) AND MOBILE APPLICATIONS WHERE HIGH GAIN AND WIDE COVERAGE IS DESIRED. TYPICAL APPLICATIONS INCLUDE 900 MHZ WIRELESS LAN, SCADA, WIRELESS VIDEO LINKS AND 800 MHZ AS WELL AS 900 MHZ CELLULAR BAND APPLICATIONS.   THIS ANTENNA FEATURES AN INTEGRAL N-FEMALE BULKHEAD TYPE CONNECTOR THAT MOUNTS THROUGH THE WALL OF AN EQUIPMENT ENCLOSURE. INCLUDED WITH THE HGV-906U IS A MAST MOUNTING KIT. CONSISTING OF A HEAVY-DUTY STEEL BRACKET AND A PAIR OF U-BOLTS, THIS KIT ALLOWS INSTALLATION ON MASTS UP TO 2.0 IN DIAMETER.   THIS OMNI ANTENNA’S CONSTRUCTION FEATURES A RUGGED 1.3 DIAMETER WHITE HIGH INTENSITY FIBERGLASS RADOME FOR DURABILITY AND AESTHETICS. IT IS DESIGNED FOR ALL WEATHER OPERATION.   FEATURES: SUPERIOR ALL WEATHER PERFORMANCE RUGGED INDUSTRIAL GRADE DESIGN LIGHTWEIGHT FIBERGLASS RADOME INTEGRAL N-FEMALE CONNECTOR HEAVY-DUTY STEEL MOUNTING BRACKET APPLICATIONS: 900 MHZ ISM BAND & WIRELESS LAN SYSTEMS MULTIPOINT APPLICATIONS NON LINE OF SIGHT (NLOS) WIRELESS VIDEO LINKS GSM HGV-906U ANTENA HYPERLINK OMNIDIRECIONAL 6DBI MAIORES DETALHES DE HGV-906U NO SITE DO FABRICANTE: HTTP://WWW.L-COM.COM/MULTIMEDIA/DATASHEETS/DS_HGV-90XU.PDF TAGS DE HGV-906U: HGV-906U, HYPERLINK HGV-906U, ANTENA HGV-906U, HYPERLINK HGV906U, ANTENA HGV906U, ANTENA OMNIDIRECIONAL HGV-906U, OMNIDIRECIONAL 6DBI. ANTENA 6DBI, HYPERLINK TECHNOLOGIES

Informações Adicionais
