Especificações Técnicas

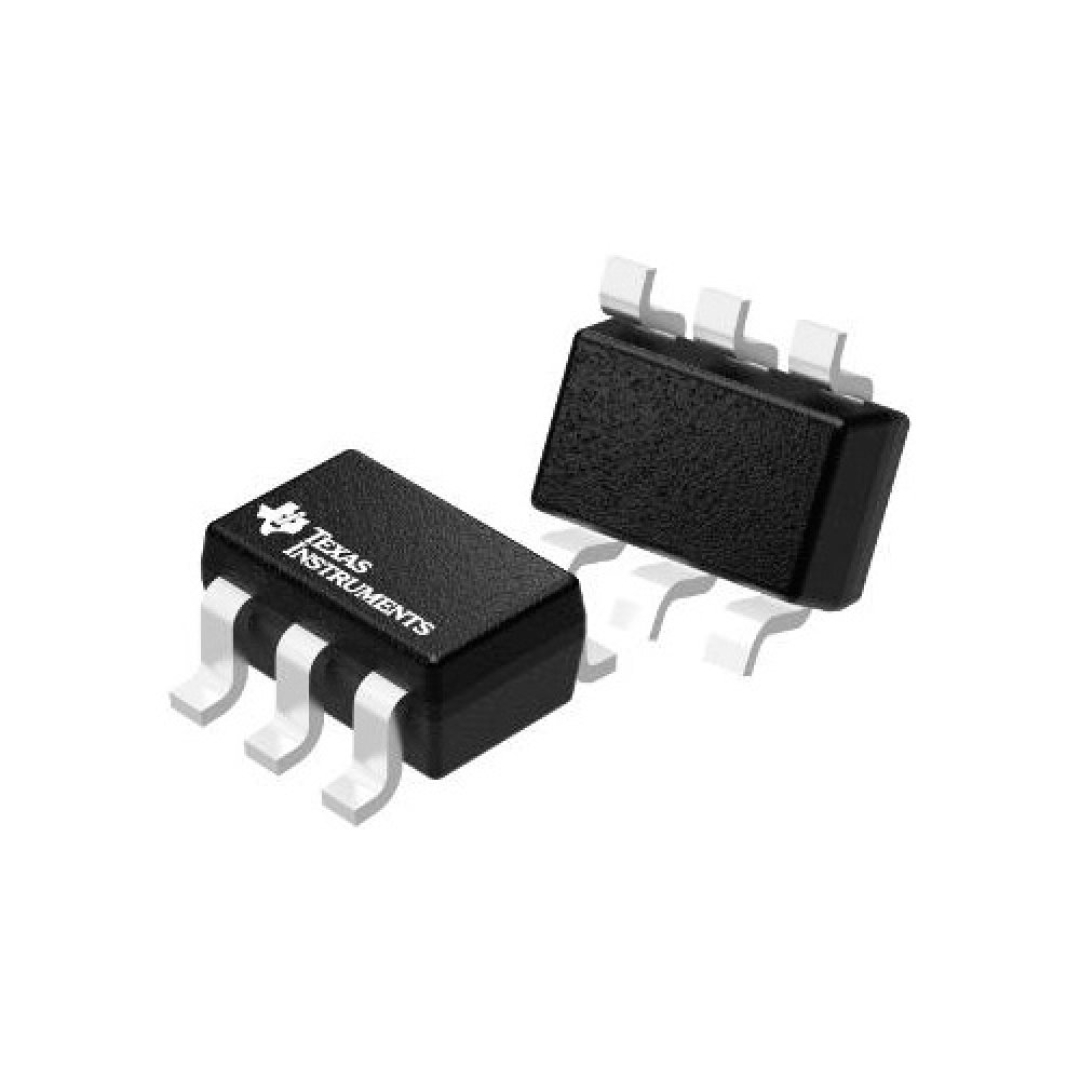

OUTROS PART NUMBERS PARA ESTE COMPONENTE: TS5A3159A FEATURES FOR THE TS5A3159A SPECIFIED BREAK-BEFORE-MAKE SWITCHING ISOLATION IN POWER-DOWN MODE, V   0 TERMINAL COMPATIBLE WITH TS5A3159 DEVICE LOW ON-STATE RESISTANCE (1 -) CONTROL INPUTS ARE 5.5-V TOLERANT LOW CHARGE INJECTION EXCELLENT ON-STATE RESISTANCE MATCHING LOW TOTAL HARMONIC DISTORTION (THD) 1.65-V TO 5.5-V SINGLE-SUPPLY OPERATION LATCH-UP PERFORMANCE EXCEEDS 100 MA PER JESD 78, CLASS II ESD PERFORMANCE TESTED PER JESD 2000-V HUMAN-BODY MODEL (A114-B, CLASS II) 1000-V CHARGED-DEVICE MODEL (C101) DESCRIPTION FOR THE TS5A3159A THE TS5A3159A DEVICE IS A SINGLE-POLE DOUBLE-THROW (SPDT) ANALOG SWITCH THAT IS DESIGNEDTO OPERATE FROM 1.65 V TO 5.5 V. THE DEVICE OFFERS LOW ON-STATE RESISTANCE AND EXCELLENT ON-STATERESISTANCE MATCHING WITH THE -BEFORE-MAKE FEATURE, TO PREVENT SIGNAL DISTORTION DURING THETRANSFERRING OF A SIGNAL FROM ONE CHANNEL TO ANOTHER. THE DEVICE HAS AN EXCELLENT TOTAL HARMONICDISTORTION (THD) PERFORMANCE AND CONSUMES VERY LOW POWER. THESE FEATURES MAKE THIS DEVICE SUITABLEFOR PORTABLE AUDIO APPLICATIONS. TS5A3159ADCKR ANALOG SWITCH WITH POWERED OFF PROTECTION 6-SC70 MAIORES DETALHES DE TS5A3159ADCKR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/TS5A3159A.PDF?TS=1643147728423&REF_URL=HTTPS%2 TAGS DE TS5A3159ADCKR: TS5A3159AYZPR, TS5A3159ADBVR, TS5A3159ADCKRE4, TS5A3159ADCKRG4, TS5A3159ADCKR, TS5A3159A, TS5A3159AD, 1-CHANNEL, 2: 1 ANALOG SWITCH WITH POWERED OFF PROTECTION 6-SC70 -40 TO 85, ANALOG SWITCH ICS SPDT ANALOG SWITCH, NC7SZ19 SERIES 5.5 V SMT TINYLOGIC 1-OF-2 DECODER/DEMULTIPLEXER - SC-70-6, MULTIPLEXADORES DE CHAVE ANALÓGICA, MULTIPLEXADOR DE CHAVE ANALÓGICA, INTERRUPTOR ANALÓGICO ÚNICO SPDT DE 6 PINOS SC-70 T/R

Informações Adicionais
